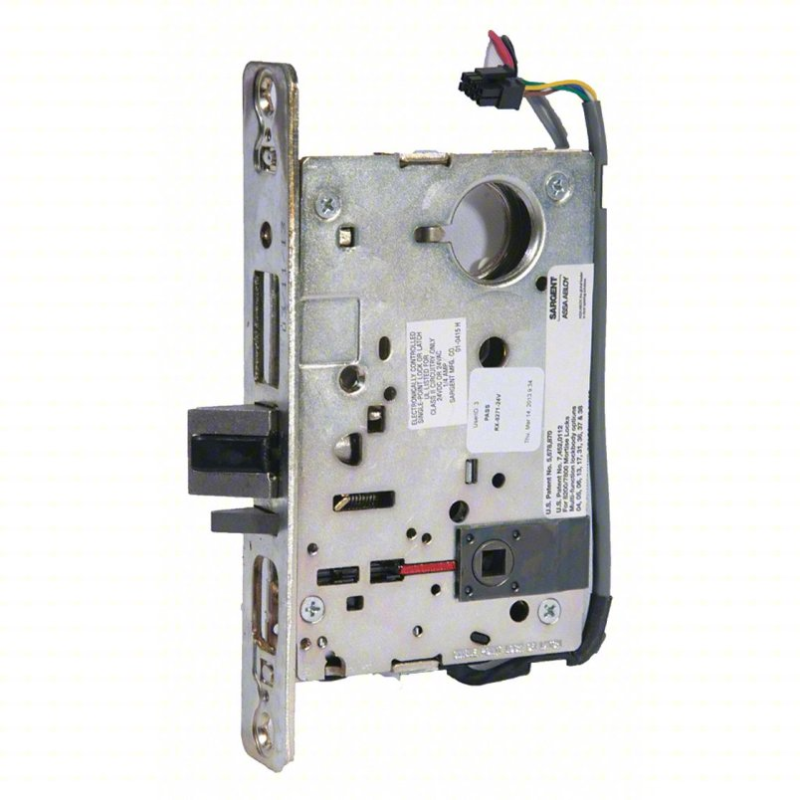

Sargent 8270-12V Lock Body Only Electro Mechanical Fail Safe Function, Single Cylinder

  • SKU: 827012VUS32D

Sargent 8270-12V Lock Body Only Electro Mechanical Fail Safe Function, Single Cylinder

  • SKU: 827012VUS32D
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$601.58/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel

Sargent 8270-12V Electric Mortise Lock Fail Safe, Lock Body Only, Outside Lever Unlocked on Power Loss, Key Retracts Latch, 12V, Grade 1, Field Reversible

Features

  • Sargent 8270-12V lock body only configuration is designed for applications where trim and cylinders are supplied separately.

  • Electro mechanical fail safe function unlocks upon loss of power for life-safety oriented openings.

  • Single cylinder function provides keyed control from one side as specified for the opening.

  • 12VDC operation supports electrified hardware integration requirements.

  • Grade 1 construction delivers heavy-duty commercial performance.

  • Field Reversible handing allows the lock body to be adjusted for door handing in the field.

Functional Details

This electro mechanical fail safe function is intended for openings that must release when power is interrupted. In normal operation, the lock works as an electrified mortise lock body, and when power is removed, the fail safe design allows egress or access according to the function and trim used with the opening.

  • 70 function — Power ON, locks outside lever

  • Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

  • Key outside retracts latchbolt

  • Lever outside retracts latchbolt, except when locked

  • Lever outside can only be locked electronically

  • Lever inside always retracts latchbolt

  • Auxiliary deadlatch

Included Components

This product includes the lock body only. Trim, cylinder, strikes, and other door hardware components are supplied separately unless otherwise specified for the complete opening.

Manufacturer

Sargent

Series

8200 Series

Model

8270-12V

SKU

8270-12V

Product Type

Mortise lock body only

Function

Electro Mechanical Fail Safe Function

Cylinder Type

Single Cylinder

Voltage

12V

Grade

Grade 1

Handing

Field Reversible

ANSI Number

ANSI/BHMA A156.13, Operational Grade 1

UL Listing Type

UL listed for labeled doors

Origin

Made in USA

Unit of Measure

Each

BAA Qualified

Yes

Limited Warranty

10 Year Limited Warranty

Series

8200 Series

Model Number

8270-12V

Function Number

8270

Electrical Rating

12VDC

Function Type

Electro mechanical fail safe

Cylinder Configuration

Single cylinder

Performance Grade

Grade 1

Handing

Field Reversible

Door Thickness

1-3/4" standard

Backset

2-3/4"

Case Front

1-1/4" x 8"

Strike

ASA strike

Standards

ANSI/BHMA A156.13

UL

UL listed
