Features

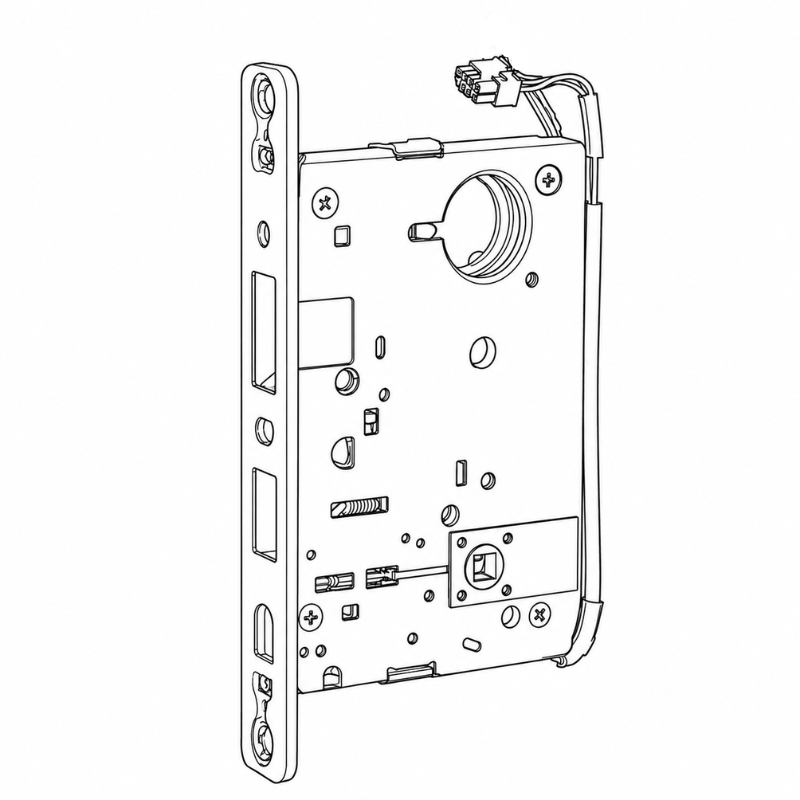

Sargent 8270-24V lock body only configuration is designed for use where trim and cylinders are supplied separately.
Electro mechanical fail safe function unlocks the door when power is interrupted.
Single cylinder setup supports keyed access on one side with coordinated trim and cylinder components.
24VDC operation matches common low-voltage electrified hardware requirements.
Grade 1 construction meets heavy-duty commercial performance standards.
Field Reversible handing allows the lock body to be adapted in the field for installation flexibility.
Functional Details
This electro mechanical fail safe function is intended for applications where the lock must release when electrical power is lost. In normal use, the lock integrates access control capability with the security and durability of a mortise lock body, while the fail safe operation supports egress and safety requirements in appropriate openings.
70 function — Power ON, locks outside lever
Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
Key outside retracts latchbolt
Lever outside retracts latchbolt, except when locked
Lever outside can only be locked electronically
Lever inside always retracts latchbolt
Auxiliary deadlatch
Included Components
This product is supplied as a lock body only. Trim, cylinder, strike, and other related components should be specified separately as required for the opening.
Manufacturer |
Sargent |
Series |
8200 Series |
Model |
8270-24V |
SKU |
8270-24V |
Product Type |
Lock Body Only |
Function |
Electro Mechanical Fail Safe Function |
Cylinder Configuration |
Single Cylinder |
Voltage |
24V |
Grade |
Grade 1 |
Handing |
Field Reversible |
ANSI Number |
F04 |
UL Listing Type |
UL listed for A label and lesser class single doors up to 4' x 10' |
BAA Qualified |
Yes |
Unit of Measure |
Each |
Origin |
Made in the USA |
Limited Warranty |
10 Year Limited Warranty |
Series |
8200 Series |
Model |
8270-24V |
Function Number |
8270 |
ANSI Function |
F04 |
Voltage |
24V |
Electrical Type |
Electro Mechanical |
Fail Safe Operation |
Outside knob/lever is unlocked by electric current; inside knob/lever is always unlocked |
Handing |
Field reversible |
Door Type |
Single doors |
Fire Door Label |
A label and lesser class |
Maximum Door Size for UL Listing |
4' x 10' |
Grade |
Grade 1 |
