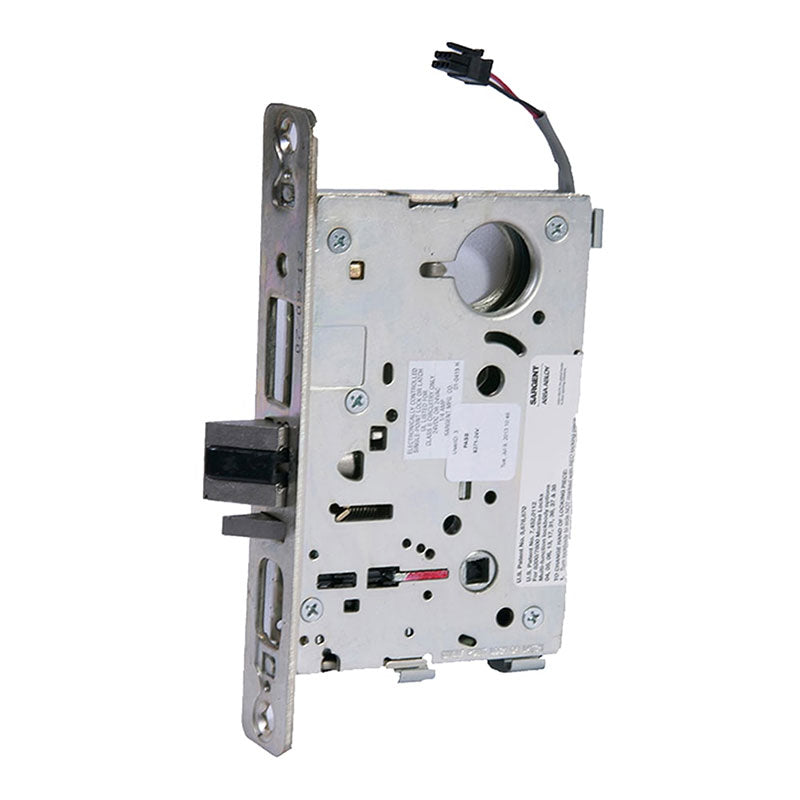

Sargent 8270-24V-US26D Lock Body Only, Fail Safe, Single Cylinder, Satin Chrome Finish

  • SKU: 827024VUS26D
Sargent 8270-24V-US26D
Sargent 8270-24V-US26D Lock Body Only, Fail Safe, Single Cylinder, Satin Chrome Finish
Sargent 8270-24V-US26D
Sargent 8270-24V-US26D Lock Body Only, Fail Safe, Single Cylinder, Satin Chrome Finish
All SARGENT Products

Sargent 8270-24V-US26D Lock Body Only, Fail Safe, Single Cylinder, Satin Chrome Finish

  • SKU: 827024VUS26D
$382.02/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

Sargent 8270-24V-US26D Lock Body Only, Electro Mechanical 24VDC Fail Safe Function, Single Cylinder, Satin Chrome Finish

The Sargent 8270-24V-US26D Lock Body Only features an Electro Mechanical 24VDC Fail Safe Function, making it a reliable and secure choice for any door. Along with a Single Cylinder, this lock is finished in Satin Chrome for a sleek and professional look.

70 Electric (Fail Safe)

  • 70 function — Power ON, locks outside lever
  • Specify voltage: 24VDC
  • Key outside retracts latch bolt
  • The lever outside retracts latchbolt, except when locked
  • Lever outside can only be locked electronically
  • Lever inside always retracts latchbolt
  • Auxiliary deadlatch
Manufacturer Sargent
Grade Grade 1
Origin USA
Unit of Measure Each
Application Complete Lock
BAA Qualified Yes
Limited Warranty 2 Years
Fire Rated 2 Hours {B}



Function 70-Electrical Fail Safe
Side Locked Outside
Door Thickness 1 3/4"
Latch Type Dead Latch (Guarded)
Latch Backset Dim 2 3/4 In.
Lock Face Size 8" X 1 1/4"
Bolt Projection 3/4"
Strike Number 82-0110
Strike Type ASA
Strike Height 4 7/8"
Strike Width 1 1/4"
Screws Combination
Power Hard Wired
Operating Voltage 24VDC
Amp Draw 500mA Peak, 15mA Holding
Product Type Electric Mortise Lock


Product Cut Sheet

Cylinder Mortise Handing Chart
