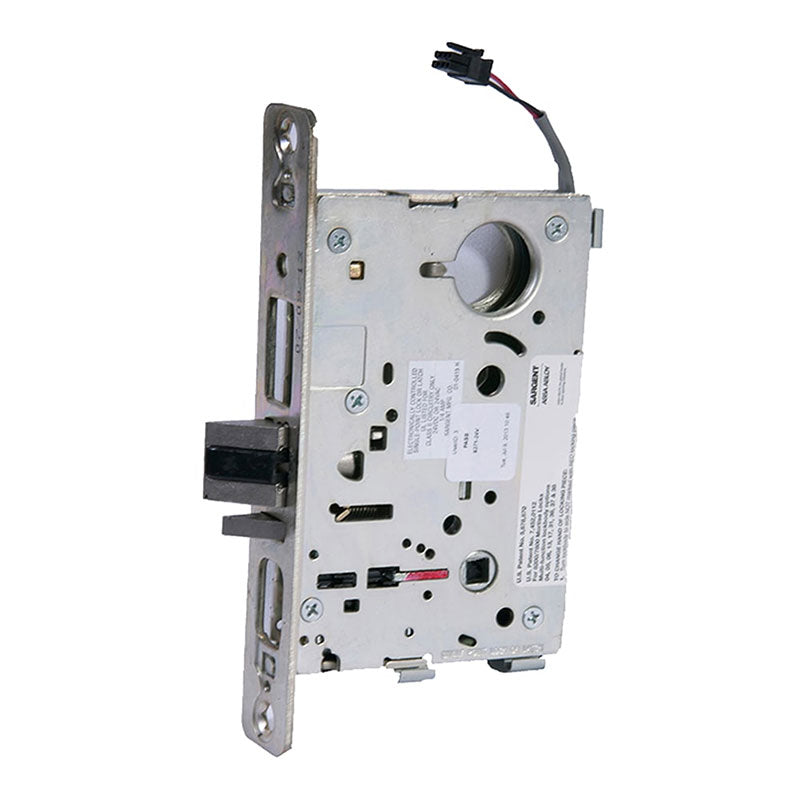

Sargent 8271-24V-US32D Fail Secure
Sargent 8271-24V-US32D Lock Body Only, Fail Secure, Single Cylinder, Satin Stainless Steel Finish
Sargent 8271-24V-US32D Fail Secure
Sargent 8271-24V-US32D Lock Body Only, Fail Secure, Single Cylinder, Satin Stainless Steel Finish
All SARGENT Products

Sargent 8271-24V-US32D Lock Body Only, Fail Secure, Single Cylinder, Satin Stainless Steel Finish

  • SKU: 827124V32D
$369.10/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

Sargent 8271-24V-US32D Lock Body Only, Electro Mechanical Fail Secure Function, Single Cylinder, 24VDC, Satin Stainless Steel Finish

The Sargent 8271-24V-US32D Lock Body Only features an Electro Mechanical Fail Secure Function and a Single Cylinder, with a 24VDC power source and a Satin Stainless Steel Finish.

71 Electric (Fail Secure)

  • 71 function - Power ON, unlocks outside lever
  • Specify voltage: 24VDC
  • Key outside retracts latch bolt
  • The lever outside retracts latchbolt, except when locked
  • Lever outside can only be locked electronically
  • Lever inside always retracts latchbolt
  • Auxiliary deadlatch
Manufacturer Sargent
Grade Grade 1
Origin USA
Unit of Measure Each
Application Complete Lock
Base Material Satin Stainless Steel
BAA Qualified Yes
Limited Warranty 2 Years
Fire Rated 2 Hours {B}



Function 71-Electrical Fail Secure
Side Locked Outside
Door Thickness 1 3/4"
Latch Type Dead Latch (Guarded)
Latch Backset Dim 2 3/4 In.
Lock Face Size 8" X 1 1/4"
Bolt Projection 3/4"
Strike Number 82-0110
Strike Type ASA
Strike Height 4 7/8"
Strike Width 1 1/4"
Screws Combination
Power Hard Wired
Operating Voltage 24VDC
Amp Draw 500mA Peak, 15mA Holding
Product Type Electric Mortise Lock
