Features

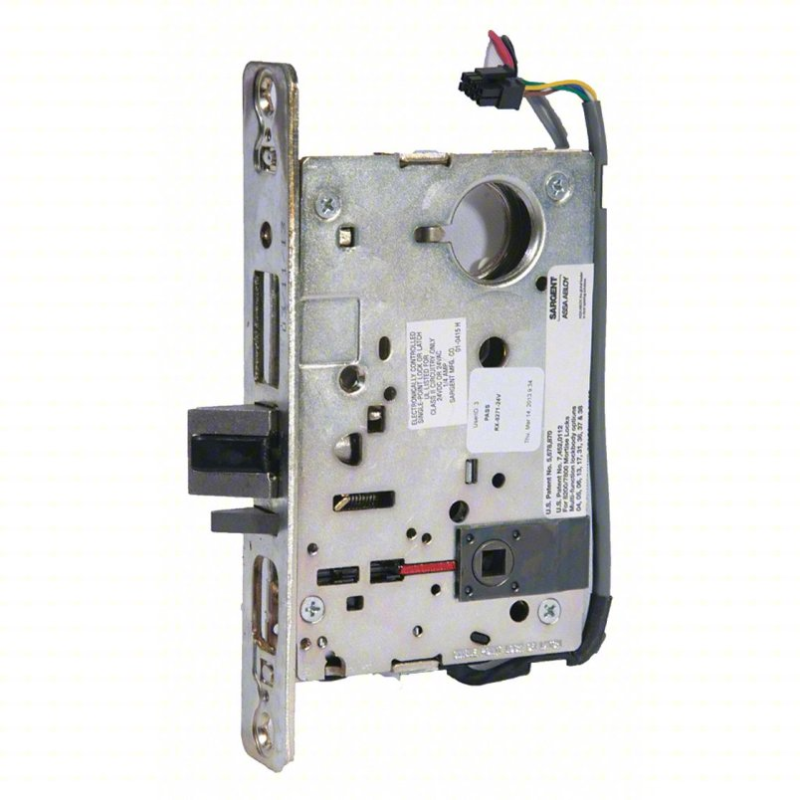

Sargent 8272-24V lock body only configuration for use where existing or separate trim will be supplied.
Electro mechanical fail safe function unlocks when power is interrupted.
Double cylinder operation provides keyed control from both sides.
24VDC operation matches the electrical requirement shown in the title.
Grade 1 construction is designed for high-use commercial applications.
Field Reversible handing allows the lock body to be adjusted for door handing in the field.
Built on the Sargent 8200 Series mortise lock platform for heavy-duty institutional and commercial use.
Functional Details
This electro mechanical fail safe function is intended for openings where the lock must release upon loss of power. In normal use, the electrified mortise lock works with access control systems while maintaining the mechanical key operation associated with a double cylinder function.
72 function — Power ON, locks both levers
Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
Key on either side retracts latchbolt
Lever from either side retracts latchbolt, except when levers are locked
Both levers can only be locked & unlocked electronically
Levers can not be locked separately, only together
Auxiliary deadlatch
Included Components
This product is a lock body only package. Trim, cylinders, strikes, and other door hardware components are supplied separately unless otherwise specified for the complete opening.
Manufacturer |
Sargent |
|---|---|
Series |
8200 Series |
Model |
8272-24V |
SKU |
8272-24V |
Product Type |
Mortise lock body only |
Function |
Electro Mechanical Fail Safe Function |
Cylinder Type |
Double Cylinder |
Voltage |
24V |
Grade |
Grade 1 |
Handing |
Field Reversible |
ANSI Number |
F04 |
UL Listing Type |
UL listed for 3 hour A label single doors, 1-1/2 hour B label single doors, and 3 hour label on pairs |
BAA Qualified |
Yes |
Origin |
Made in the USA |
Unit of Measure |
Each |
Limited Warranty |
10 Year Limited Warranty |
Series |
8200 |
|---|---|
Model |
8272-24V |
ANSI Function Number |
F04 |
BHMA Grade |
1 |
Voltage |
24V |
Door Thickness Range |
1-3/4" standard, 2" to 4" available |
Backset |
2-3/4" standard, 5" available |
Latchbolt Throw |
3/4" |
Deadbolt Throw |
1" |
Front Thickness |
1-1/4" |
Case Depth |
4" |
Case Height |
6" |
Handing |
Field reversible |
Fire Rating |
3 hour single door, 1-1/2 hour B label single door, 3 hour pairs |
