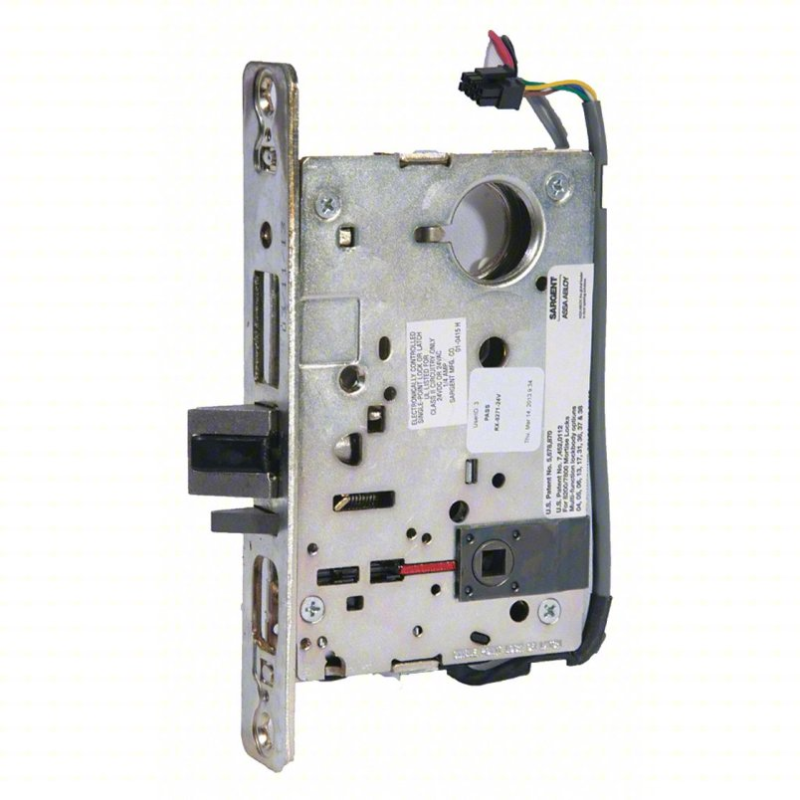

Sargent 8273-24V Lock Body Only Electro Mechanical Fail Safe Function, Double Cylinder, 24VDC, Grade 1, Feild Reversible

The Sargent 8273-24V Lock Body Only Electro Mechanical Fail Safe Function, Double Cylinder, 24VDC, Grade 1, Feild Reversible is a heavy-duty mortise lock solution built for commercial openings that require dependable electrified access control and life-safety performance. This Sargent 8273-24V configuration combines a lock body only format with an electro mechanical fail safe function, double cylinder operation, and 24VDC power requirements for controlled security integration. As part of the Grade 1 8200 Series platform, it is designed for demanding use and offers field reversible handing to simplify installation and inventory management across a range of door applications.

Features

• Sargent 8273-24V lock body only configuration is designed for use within the 8200 Series mortise lock platform.

• Electro mechanical fail safe function unlocks when power is interrupted for controlled egress and access applications.

• Double cylinder operation provides keyed control from both sides of the door.

• 24VDC operating voltage supports electrified hardware and access control integration.

• Grade 1 construction is built for high-traffic commercial and institutional openings.

• Feild reversible handing allows the lock body to be adjusted for either door hand in the field.

Functional Details

This electro mechanical fail safe function is intended for openings where the lock must release upon loss of power. In this 8273-24V lock body only configuration, the mortise lock works with 24VDC power and double cylinder control, making it suitable for managed entry points that require electrified locking with field reversible flexibility.

• 73 function — Power ON, unlocks both levers

• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key on either side retracts latchbolt

• Lever from either side retracts latchbolt, except when levers are locked

• Both levers can only be locked & unlocked electronically

• Levers can not be locked separately, only together

• Auxiliary deadlatch

Included Components

This product is supplied as a lock body only. Trim, cylinders, strikes, and other door hardware components are ordered separately based on the opening requirements and the selected 8200 Series configuration.
