Sargent 8504-G-ETL Narrow Stile Rim Exit Device, Night Latch Function, 43"-48" Bar, ETL Trim

  • SKU: 8504GETLUS32DLHR
$1,638.36/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
Handing: LHR Left Hand Reverse
Handing Guide:
handing chart image

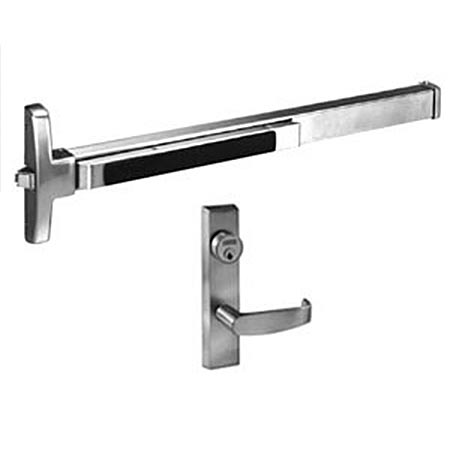

Sargent 8504-G-ETL Narrow Stile Rim Exit Device, L Lever, Night Latch Key Retracts Latch Bolt, 43-48 In Door, Hex Key Dogging, Grade 1

The Sargent 8504-G-ETL Narrow Stile Rim Exit Device is equipped with an L lever and a night latch feature that enables key operation to retract the latch bolt. Suitable for doors between 43 and 48 inches, it includes hex key dogging and is certified to Grade 1 standards for maximum reliability and security.

8504 ET Trim Function: 704 Night Latch

Vendor Assa Abloy
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
ANSI Number 1
BAA Qualified Yes
Limited Warranty 5 Years
Physical Appearance Narrow Stile Pushpad
Device Type Rim
Device Lenght 48"
Mechanical Function Exit Only
Trim ETL
Minimum Stile Size 2"
Door Material Aluminum
Door Thickness 1-3/4" to 2-1/4"
Door Width 43" to 48"
Cylinder OPTIONAL
Handed  Yes
Fire Rated Yes
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
