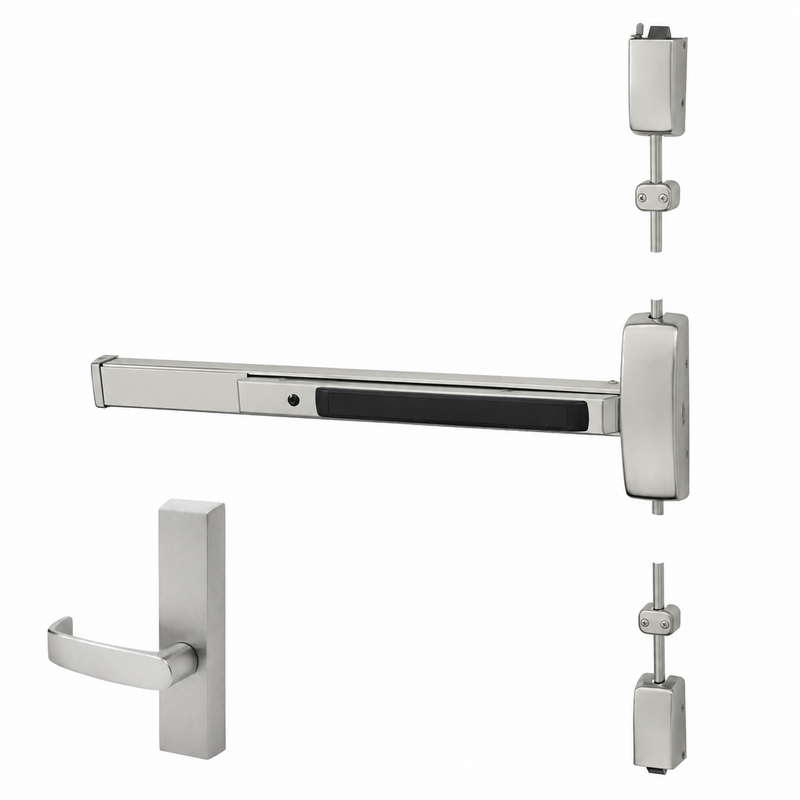

The Sargent 8773-G-ETL-84-12V is a Grade 1 8700 surface vertical rod exit device with top and bottom rods for 43 to 48-inch door widths and 84-inch door height. This configuration is non-fire-rated panic hardware. It is supplied with ETL electrified trim and the L lever design.
Function 73 is Fail Safe electrified ET trim operation. At 12VDC, power off unlocks the outside lever. The pushbar mechanically retracts the latch for egress independently of the electrical state of the outside trim.
No Cylinder. This function uses no cylinder and is not a less-cylinder preparation requiring a separately purchased cylinder. The catalog lists a separate 306 auxiliary control for applications requiring cylinder override; it is not included with this trim configuration.
| Series | 8700 |
|---|---|
| Function | 73 - Fail Safe |
| Specified Voltage | 12VDC |
| Outside Trim | ETL - L lever |
| Cylinder | No cylinder |
| Door Width | 43 to 48 inches |
| Door Height | 84 inches |
| Rail Size | G |
| Handing | Select LHR or RHR variant; match the supplied trim to the opening |
| Dogging | Hex key dogging |
| Latching | Top and bottom latches |
| Minimum Stile Width | 4-1/2 inches with trim; 3-1/2 inches without trim |
| Door Thickness | 1-3/4 inches minimum; thicker doors require the appropriate option |
| Pushbar Projection - Neutral | 3 inches |
| Pushbar Projection - Depressed | 2-1/8 inches |
| Center Case | 8-3/8 x 2-5/8 inches |
