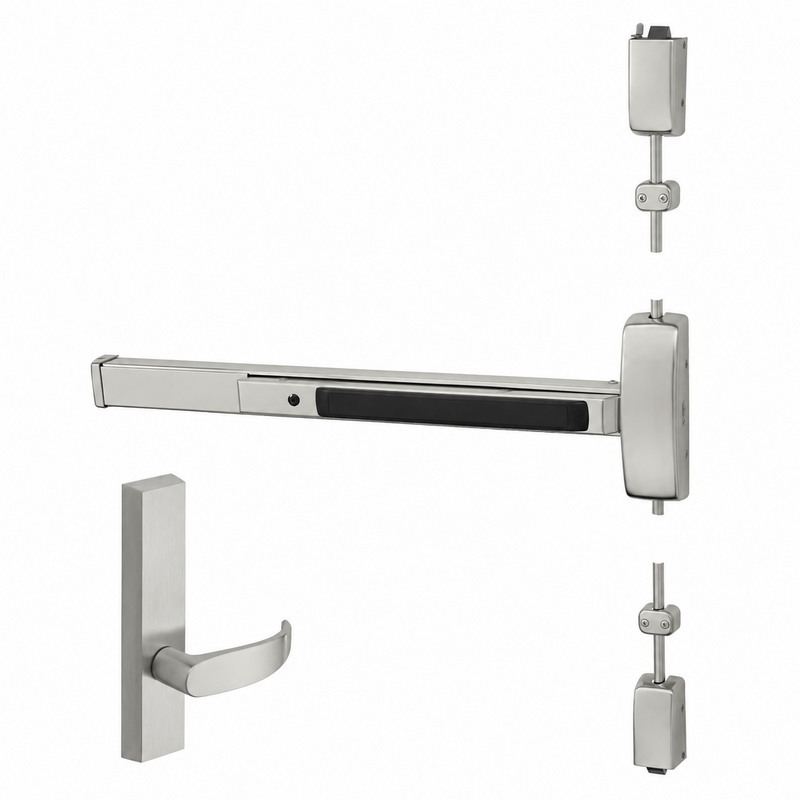

Sargent 8773-J-ETP-96-24V Surface Vertical Rod Exit Device, Electrified Trim 24V Fail Safe, ET Control, P Lever, 37-42 In Door, 96" Door Height, Hex Key Dogging, No Cylinder, Grade 1

The Sargent 8773-J-ETP-96-24V is a Grade 1 8700 surface vertical rod exit device with top and bottom rods for 37 to 42-inch door widths and 96-inch door height. This configuration is non-fire-rated panic hardware. It is supplied with ETP electrified trim and the P lever design.

• 37 to 42-inch door width; 96-inch door height.
• Two-point latching with top and bottom rods.
• Hex key dogging for the non-fire-rated configuration.
• ANSI/BHMA A156.3 Grade 1.

Function 73 is Fail Safe electrified ET trim operation. At 24VDC, power off unlocks the outside lever. The pushbar mechanically retracts the latch for egress independently of the electrical state of the outside trim.

No Cylinder. This function uses no cylinder and is not a less-cylinder preparation requiring a separately purchased cylinder. The catalog lists a separate 306 auxiliary control for applications requiring cylinder override; it is not included with this trim configuration.
