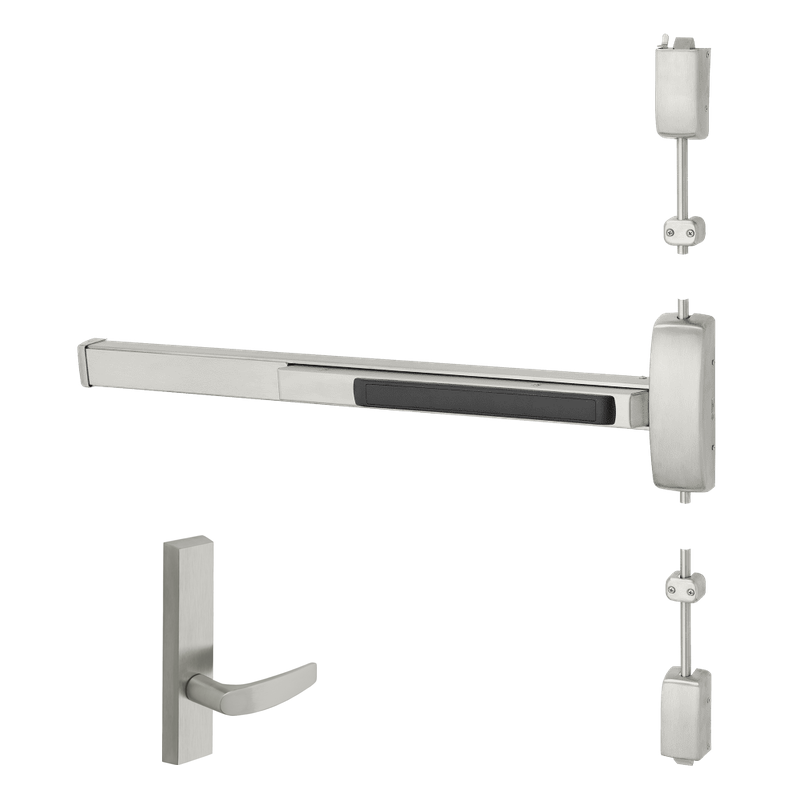

Sargent 8774-F-ETB-96-12V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 33-36" Width, 96" Ht Door
The Sargent 8774-F-ETB-96-12V is a heavy-duty electrified surface vertical rod exit device built for high-traffic commercial openings that demand reliable access control. Configured as fail secure, it keeps the outside lever locked until power is applied, making it ideal for secured entries where controlled entry matters. This model is sized for doors 33" to 36" wide and up to 96" in height, and includes the ETB electrified trim for 12V operation. As part of Sargent's 80 Series, it delivers the durability, smooth operation, and code compliance that specifiers rely on for institutional and commercial projects.
Features
- Electrified surface vertical rod exit device for top and bottom latching on wide, tall doors.
- Fail secure electrified function keeps the outside lever locked when power is interrupted.
- ETB electrified lever trim provides controlled access from the exterior.
- Rated for 33" to 36" wide doors and door heights up to 96".
- Operates on 12V DC for integration with access control systems.
- Grade 1 construction engineered for demanding, high-use environments.
Functional Details
The fail secure (F) configuration means the exterior lever remains locked during a power loss, requiring power to unlock and allow entry. Free egress from the inside is always available by pressing the push bar, meeting life-safety requirements regardless of power status.
- Fail Secure: Outside trim is locked when power is removed.
- Energizing the device unlocks the outside lever for access.
- Free egress is maintained at all times via the push rail.
Arm Type Details
This is a surface-mounted vertical rod device, with rods and latches at the top and bottom of the door engaging the frame header and threshold. The top and bottom latching provides secure two-point locking well suited to taller 96" door applications.
Included Components
The device ships with the ETB electrified lever trim, top and bottom surface-mounted vertical rods, latch assemblies, and mounting hardware required for installation.
Product Specifications
| Manufacturer | Sargent |
| SKU | 8774-F-ETB-96-12V |
| Series | 80 Series Exit Devices |
| Device Type | Electrified Surface Vertical Rod Exit Device |
| Function | Fail Secure |
| Grade | ANSI/BHMA Grade 1 |
| Origin | Made in USA |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed Panic Hardware |
| ANSI Number | A156.3 |
| Limited Warranty | Yes |
Technical Specifications
| Door Width Range | 33" - 36" |
| Door Height | 96" |
| Voltage | 12V DC |
| Latching Points | Top and Bottom (Two-Point) |
| Mounting Type | Surface Mounted |
| Trim Type | ETB Electrified Lever Trim |
| Electrified Function | Fail Secure |
| Device Length | Sized for 33" - 36" door width |
| Door Type | Wood or Hollow Metal |
| Handing | Non-Handed |
