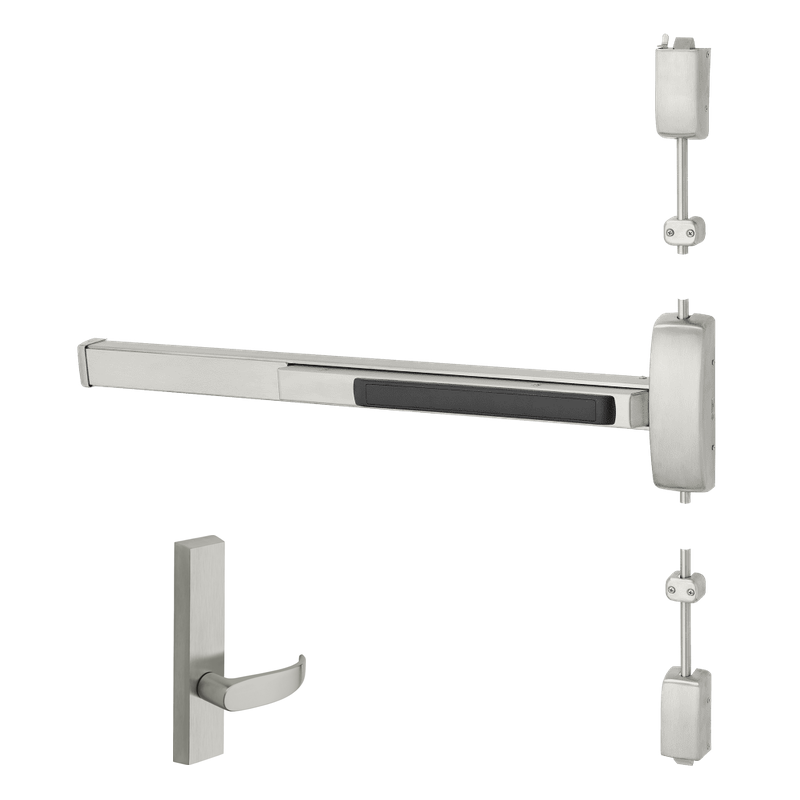

Sargent 8774-F-ETP-84-12V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 33-36" Wd, 84" Ht Door

The Sargent 8774-F-ETP-84-12V is a heavy-duty electrified surface vertical rod exit device engineered for demanding commercial openings. Built for doors ranging from 33 to 36 inches wide and 84 inches tall, this device combines dependable panic hardware performance with electrified access control. The fail secure configuration keeps the door locked during a power loss, making it ideal for perimeter and security-sensitive applications. Operating on 12V, it integrates easily with electronic access systems while the ETP trim provides reliable lever control on the exterior. Part of Sargent's proven 80 Series, it delivers the strength, longevity, and code compliance expected from professional-grade exit hardware.

Features

• Electrified surface vertical rod exit device designed for 84-inch tall doors measuring 33 to 36 inches wide.
• Fail secure operation keeps the door secured when power is interrupted.
• 12V operation for straightforward integration with access control systems.
• ETP electrified trim provides controlled lever access on the exterior.
• Surface-mounted top and bottom rods for simplified installation and maintenance.
• Part of the durable Sargent 80 Series platform for long-term commercial use.

Functional Details

In a fail secure configuration, the outside lever trim remains locked when power is removed and unlocks only when energized, maintaining security during power failures. Free egress is always available from the push side by depressing the exit device touchbar.

• Fail Secure (24 VDC): Outside trim is locked when power is off, unlocked when power is applied.
• Free egress at all times from the inside.

Included Components

The device ships with the surface vertical rod exit chassis, top and bottom latch assemblies, ETP electrified lever trim, mounting hardware, and strikes for complete door installation.
