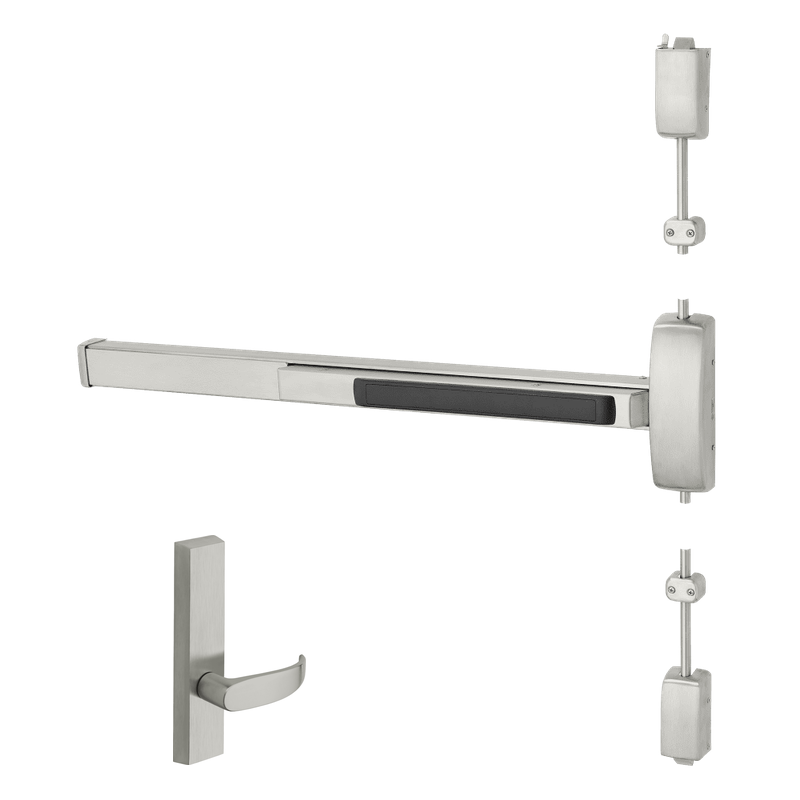

Sargent 8774-F-ETP-96-24V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 33-36" Width, 96" Ht Door

The Sargent 8774-F-ETP-96-24V is an electrified surface vertical rod exit device built for heavy-duty commercial openings up to 96 inches in height and 33 to 36 inches in width. Configured for fail secure operation, it keeps the opening locked during a power loss, making it well suited for applications where security must be maintained. The ETP electrified trim provides remote control over outside lever access, while the surface-mounted vertical rods deliver reliable top and bottom latching. Operating on 24V, this Grade 1 device combines durable construction with dependable access control for schools, healthcare facilities, and other high-traffic environments.

Features

• Surface-mounted vertical rod design provides secure top and bottom latching on tall door openings.
• Electrified ETP trim allows remote locking and unlocking of the outside lever.
• Fail secure configuration keeps the door locked when power is removed.
• Sized for doors 33 to 36 inches wide and up to 96 inches tall.
• Operates on 24V DC for compatibility with common access control systems.
• Grade 1 rated for durability in demanding commercial applications.

Functional Details

In the fail secure mode, the outside trim remains locked when power is removed, requiring a key or valid credential to gain entry, while free egress from the inside is always available through the push bar.

• Fail secure: outside trim is locked when power is off.
• Energize to unlock the outside lever for controlled access.
• Free egress is always permitted from the inside via the push rail.

Included Components

This device ships as a complete surface vertical rod exit device with the ETP electrified lever trim, top and bottom rod assemblies, strikes, and mounting hardware for installation on the specified door size.
