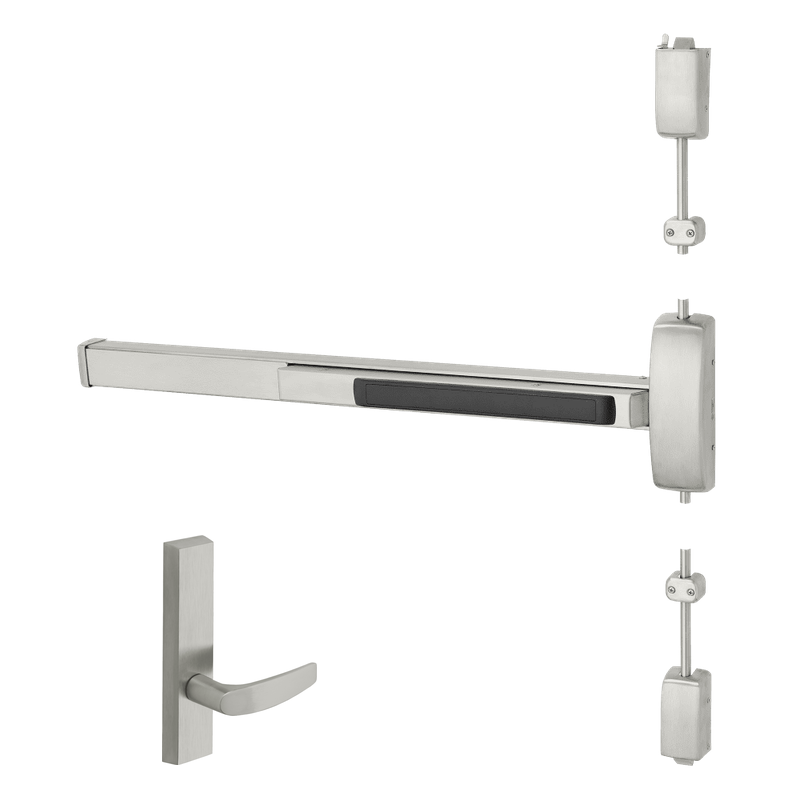

Sargent 8774-G-ETB-84-24V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 43-48" Width, 84" Ht Door

The Sargent 8774-G-ETB-84-24V is an electrified surface vertical rod exit device built for heavy-duty commercial openings requiring controlled access with reliable security. Designed to fit doors measuring 43 to 48 inches wide and 84 inches tall, this device operates on a 24V power supply and features a fail secure function, keeping the opening locked during a power loss. Paired with the ETB lever trim and G (gramercy) design, it delivers dependable latching performance while meeting the demands of high-traffic environments. This Grade 1 rated device is a trusted choice for educational, healthcare, and institutional facilities that need secure egress with electrified control.

Features

• Electrified surface vertical rod exit device engineered for durable, long-term use in demanding commercial settings.
• Fits oversized doors from 43 to 48 inches wide and 84 inches tall.
• Operates on 24V power with a fail secure configuration for enhanced security.
• ETB lever trim provides smooth and ergonomic exterior operation.
• Grade 1 ANSI/BHMA certification ensures top-tier performance and reliability.
• Surface-mounted top and bottom latching rods secure the door at multiple points.

Functional Details

The fail secure (8774) function keeps the outside trim locked when power is removed, ensuring the opening remains secured during power interruptions. Electrical current is required to release the outside lever for entry, while free egress is always maintained from the inside.

• Fail Secure (Electrically Locked): Outside trim is locked when de-energized; momentary or constant current unlocks the outside trim.
• Free egress at all times from the inside via the push bar.

Arm Type Details

This device uses surface-mounted vertical rods that latch at both the top and bottom of the door. When the push bar is depressed, both latches retract simultaneously to allow quick egress, then re-engage to secure the opening at two points for added stability and resistance.

Included Components

The device ships complete with the surface vertical rod exit chassis, ETB electrified lever trim in the G (gramercy) design, top and bottom latch assemblies, and the required mounting hardware for installation on 84-inch tall doors.
