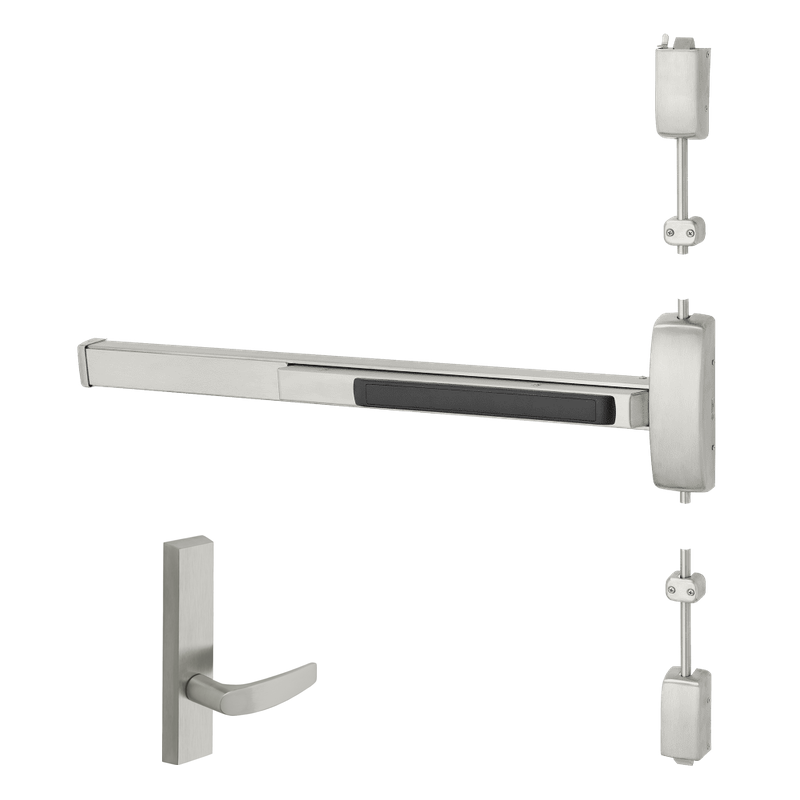

Sargent 8774-G-ETB-96-12V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 43-48" Width, 96" Ht Door

The Sargent 8774-G-ETB-96-12V is an electrified surface vertical rod exit device engineered for demanding commercial openings up to 96 inches in height and 43 to 48 inches in width. Operating on 12V DC in a fail secure configuration, it keeps the outside trim locked during a power loss, maintaining security while preserving free egress from the inside at all times. Paired with the ETB escutcheon trim with B lever design, this Grade 1 device delivers dependable access control for electrified applications such as access-controlled entries and secured corridors. Built to Sargent's exacting standards, it combines rugged durability with smooth, reliable daily operation.

Features

• Electrified fail secure operation locks the outside trim when power is removed.
• Surface-mounted vertical rod design engineered for tall doors up to 96 inches in height.
• Sized for door widths ranging from 43 to 48 inches.
• Operates on 12V DC for integration with access control systems.
• ETB escutcheon trim with B-style lever provides durable, ergonomic access.
• Grade 1 construction built for high-traffic commercial environments.
• Free egress maintained from the interior at all times for life-safety compliance.

Functional Details

In a fail secure configuration, the outside lever trim remains locked when the device loses power. Applying voltage releases the trim to allow entry, while pushing the exit device touchpad always permits immediate egress from the secured side.

• Fail secure: outside trim is locked when power is off.
• Energize to unlock the outside trim for controlled access.
• Free egress available at all times from the inside.

Arm Type Details

This device uses a surface-mounted vertical rod mechanism, with top and bottom latch bolts securing the door at the header and threshold. The exposed rods make installation and service straightforward while providing two-point latching for added security on tall openings.

Included Components

The 8774-G-ETB-96-12V ships with the surface vertical rod exit device chassis, top and bottom latch assemblies, vertical rods sized for 96-inch doors, and the ETB escutcheon trim with B lever for outside access.
