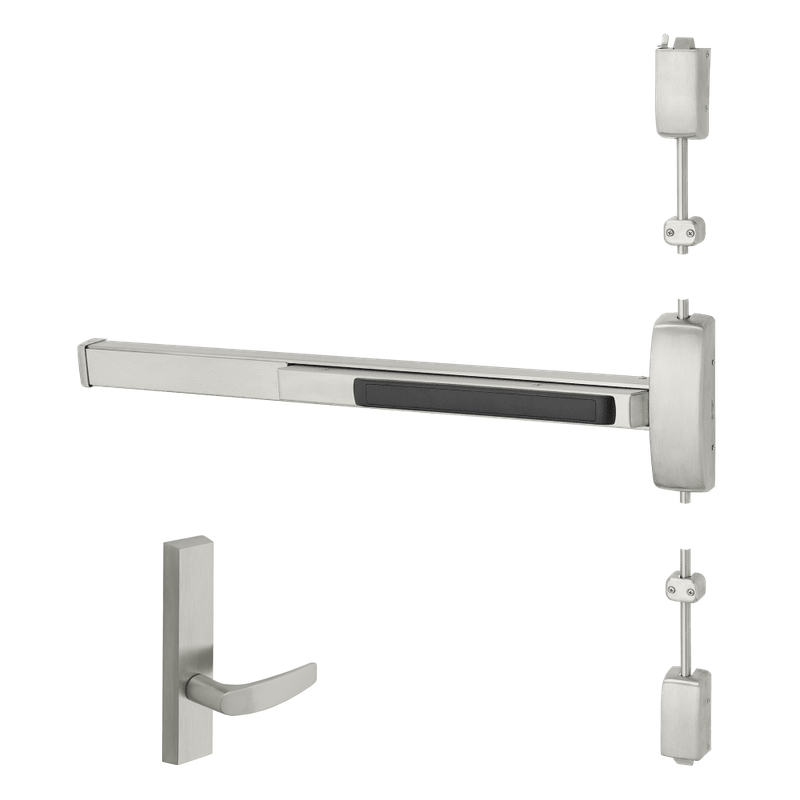

Sargent 8774-G-ETB-96-24V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 43-48" Width, 96" Ht Door

The Sargent 8774-G-ETB-96-24V is a heavy-duty electrified surface vertical rod exit device built for wide, tall openings measuring 43" to 48" wide on 96" high doors. Configured for fail secure operation, it keeps the opening locked from the outside during a power loss while always allowing free egress from the inside. The device pairs the 8700 series surface vertical rod chassis with the ETB electrified trim and the G lever design, running on 24V DC power for integration with access control, electric strikes, and remote release systems. Durable construction and ANSI Grade 1 certification make it a reliable choice for high-traffic commercial and institutional entrances.

Features

• Electrified surface vertical rod exit device for 96" height doors with a 43"-48" width range.
• Fail secure operation keeps the outside trim locked when power is removed.
• 24V DC electrified ETB trim for connection to access control and electrified lock systems.
• G lever design offers a comfortable, ADA-friendly grip.
• Surface-mounted vertical rods engage top and bottom latch points for a secure hold.
• Non-handed design simplifies ordering and installation.
• ANSI/BHMA Grade 1 rated for demanding commercial environments.

Functional Details

In the fail secure (electrically locked) configuration, the outside trim remains locked when power is not applied and unlocks only when energized, maintaining security during power interruptions. The push rail always provides immediate free egress regardless of power status.

• Fail Secure (Electrically Locked): Outside trim is locked when power is removed.
• Energizing the device unlocks the outside lever for controlled access.
• Free egress is always available from the inside through the push rail.

Arm Type Details

This model uses a surface-mounted vertical rod mechanism. The rods run vertically along the door face to engage latch points at the top of the frame and bottom of the opening, distributing holding force across two points for added stability on tall doors.

Included Components

The device ships with the surface vertical rod exit chassis, top and bottom latch assemblies, the ETB electrified lever trim with G lever, mounting hardware, and strikes for the specified door dimensions.
