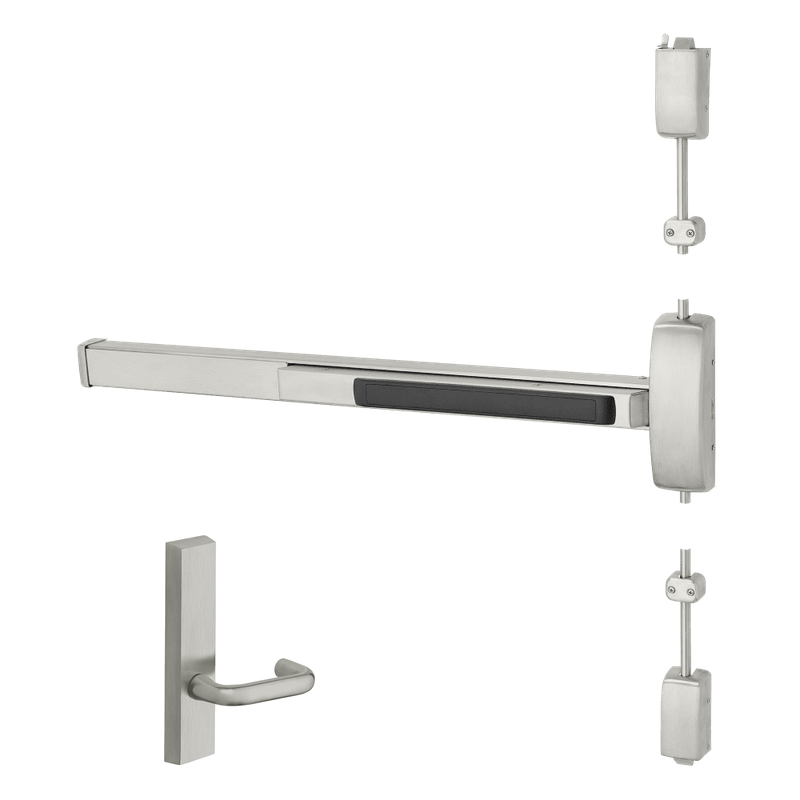

Sargent 8774-G-ETJ-96-24V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 43-48" Width, 96" Ht Door

The Sargent 8774-G-ETJ-96-24V is a heavy-duty electrified surface vertical rod exit device built for demanding commercial and institutional openings. Designed to accommodate doors measuring 43 to 48 inches wide and up to 96 inches tall, it pairs reliable panic egress with controlled access via the ETJ electrified trim. Operating on 24V and configured for fail secure, the outside lever remains locked during a power loss, keeping the opening secured until energized. With its Grade 1 construction and surface-mounted top and bottom rods, this device delivers dependable performance and lasting durability in high-traffic environments.

Features

• Electrified surface vertical rod exit device engineered for Grade 1 commercial applications.
• Sized for doors 43" to 48" wide and up to 96" in height.
• Fail secure operation keeps the outside trim locked when power is removed.
• Operates on 24V for compatibility with standard access control systems.
• Surface-mounted top and bottom rods provide two-point latching for added security.
• ETJ electrified lever trim offers controlled access from the exterior.

Functional Details

In a fail secure configuration, the electrified trim locks the outside lever when de-energized, requiring power to release it for entry. Free egress from the inside is always available by pushing the exit device touchpad. This setup is ideal for openings where security must be maintained during power interruptions.

• Fail secure: outside trim is locked when power is off and unlocked when power is applied.
• Free egress is always available from the inside via the push rail.
• 24V DC operation for use with electrified access control.

Arm Type Details

This device uses a surface vertical rod mechanism with latch points at the top and bottom of the door. The vertical rods retract simultaneously when the touchpad is depressed, allowing smooth egress while providing secure two-point latching when closed.

Included Components

The device ships with the surface vertical rod assembly, top and bottom latches, the ETJ electrified lever trim, and standard mounting hardware for installation on the specified door size.
