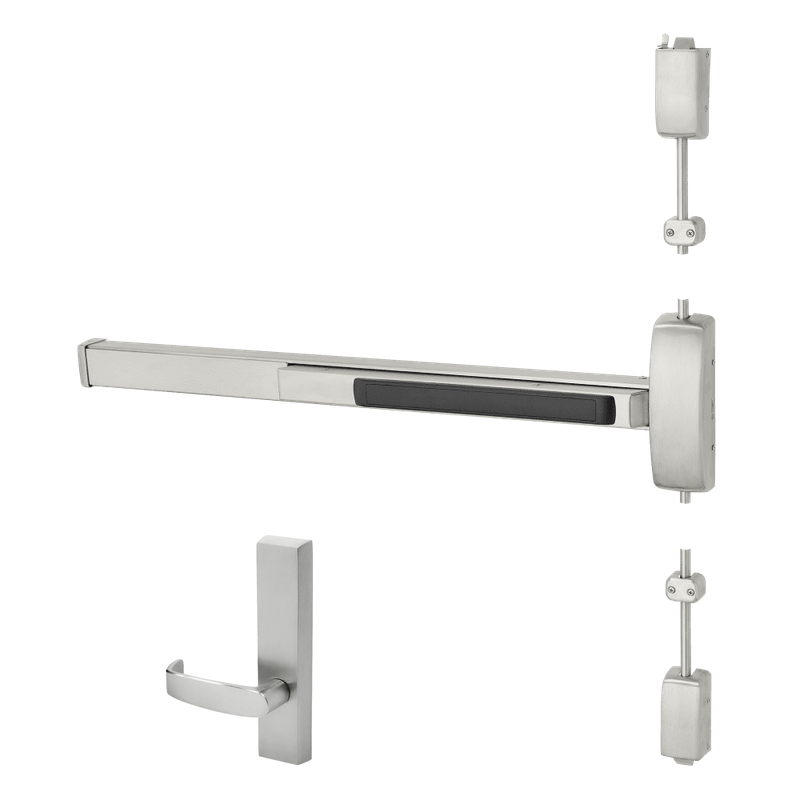

Sargent 8774-G-ETL-84-12V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 43-48" Width, 84" Ht Door

The Sargent 8774-G-ETL-84-12V is a heavy-duty electrified surface vertical rod exit device engineered for demanding commercial openings measuring 43" to 48" wide and up to 84" tall. Running on 12V DC in a fail secure configuration, it keeps the outside lever locked during a power outage to maintain security while still allowing free egress from the inside at all times. Paired with Sargent's G (ETL) electrified lever trim, the device integrates smoothly with access control systems, making it ideal for controlled entrances. Built to ANSI/BHMA Grade 1 standards, it delivers dependable performance in schools, hospitals, offices, and other high-traffic facilities.

Features

• Surface-mounted vertical rod design latches at the top and bottom of the door for added security.
• Electrified lever trim connects directly to access control and electronic security systems.
• Fail secure operation keeps the outside trim locked when power is removed.
• Operates on 12V DC for compatibility with most low-voltage power supplies.
• Sized for tall-door applications spanning 43-48" wide and 84" high.
• Grade 1 construction meets the highest ANSI/BHMA durability rating.
• Non-handed design simplifies ordering and installation.

Functional Details

In fail secure mode, the outside lever stays locked when no power is applied. When the system energizes the device, the lever is released for controlled entry, while the push bar always allows immediate free egress from the secure side.

• Fail Secure (locked when de-energized), outside trim controlled by electric current.
• Free egress at all times via the push pad.
• 12V DC operating voltage.

Arm Type Details

This is a surface-mounted vertical rod exit device. The vertical rods engage latch points at the top and bottom of the door frame, distributing holding force along the full door height for secure, dependable latching without requiring a floor strike in top-latch-only configurations.

Included Components

The device ships with the 8774 electrified vertical rod exit device chassis, G (ETL) electrified lever trim, mounting hardware, top and bottom latch assemblies, and vertical rod components sized for an 84" door height.
