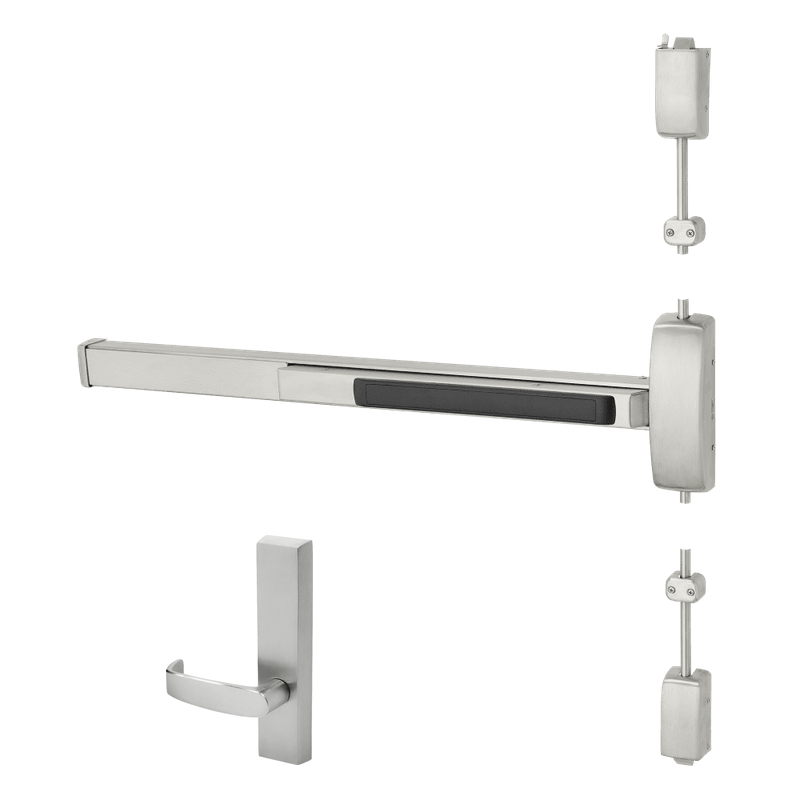

Sargent 8774-G-ETL-84-24V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 43-48" Width, 84" Ht Door

The Sargent 8774-G-ETL-84-24V is an electrified surface vertical rod exit device built for demanding commercial and institutional openings. Configured as fail secure, it keeps the door latched and protected during a power loss, making it a strong fit for access-controlled entrances where security comes first. Sized for doors 43 to 48 inches wide and 84 inches tall, this device pairs the proven 8700 Series surface vertical rod platform with Sargent's ETL electric latch retraction and a 24V DC input. Combined with the G trim option and heavy-duty construction, it delivers dependable two-point latching and remote latch control for high-traffic applications.

Features

• Electrified surface vertical rod exit device from Sargent's 8700 Series.
• Fail secure operation keeps the door latched when power is interrupted.
• Electric latch retraction (ETL) allows remote unlocking and momentary or sustained dogging.
• Sized for doors 43" to 48" wide and 84" in height.
• Operates on 24V DC power for integration with access control systems.
• Surface-mounted top and bottom rods provide secure two-point latching.
• Durable construction built to withstand heavy daily use.

Functional Details

The ETL electric latch retraction function uses a motor to withdraw the latch bolts electrically, letting the door be pushed or pulled open without operating the exit device by hand. When power is applied, the latches retract and hold until power is removed, at which point the device returns to its fail secure latched state.

• Electric latch retraction for remote operation and controlled access.
• Fail secure: latches remain projected and secure upon loss of power.
• 24V DC power supply required for latch retraction.
