Sargent 8774-G-ETL-96-12V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 43-48" Width, 96" Ht Door

The Sargent 8774-G-ETL-96-12V is an electrified surface-mounted vertical rod exit device built for heavy-duty commercial openings up to 96 inches in height and 43 to 48 inches in width. Configured for fail secure operation, it keeps the outside trim locked when power is removed, making it a reliable choice for access-controlled entrances where security is a priority. Operating on 12V, this device integrates an electric latch retraction (ETL) function that allows remote unlocking without compromising the free egress provided by the push bar. Backed by Sargent's reputation for durable, Grade 1 hardware, the 8774-G-ETL is well suited for institutional, educational, and healthcare facilities.

Features

• Surface-mounted vertical rod design for tall doors up to 96 inches in height.
• Fits door widths ranging from 43 to 48 inches.
• Electric latch retraction (ETL) enables remote unlocking and momentary or continuous latch hold.
• Fail secure configuration keeps outside trim locked during a power failure.
• Operates on 12V DC for compatibility with common access control systems.
• G (ET) style lever trim for comfortable, ADA-friendly operation.
• Grade 1 rated for high-traffic, heavy-duty commercial use.

Functional Details

The 8774 ETL function uses an internal motor to electrically retract the latch bolts, allowing the door to be unlocked and released remotely. In fail secure mode, removing power returns the device to a locked state while free egress through the push bar is always maintained.

• Electric latch retraction allows remote unlocking of the exit device.
• Fail secure: outside trim is locked when power is removed.
• Free egress is always available from the inside push bar.

Included Components

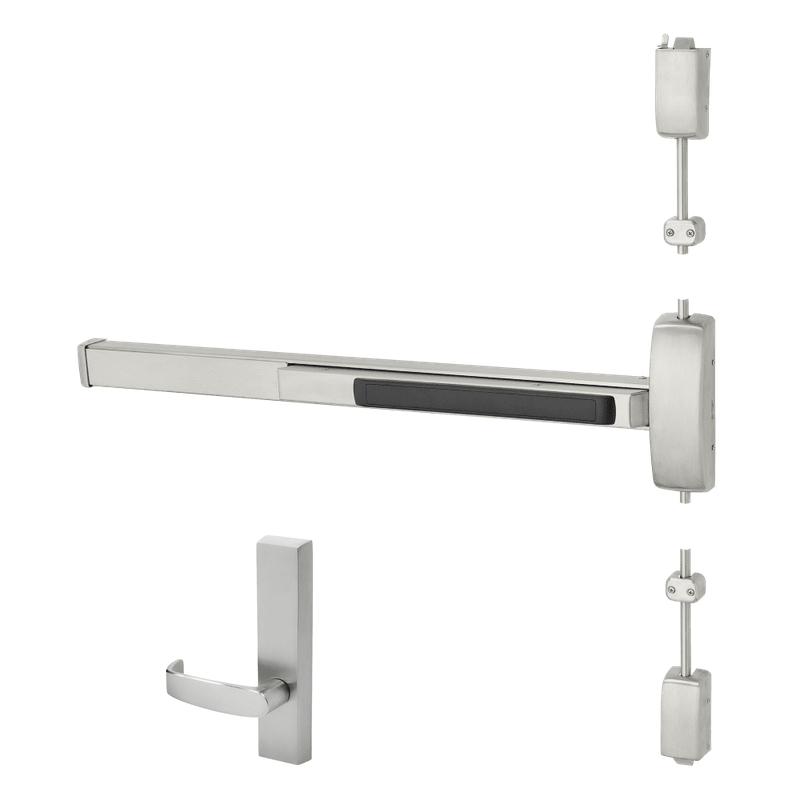

This assembly ships with the surface vertical rod exit device chassis, top and bottom latch mechanisms, vertical rods, G-style ET lever trim, and the required mounting hardware for installation on a 96-inch tall door.
