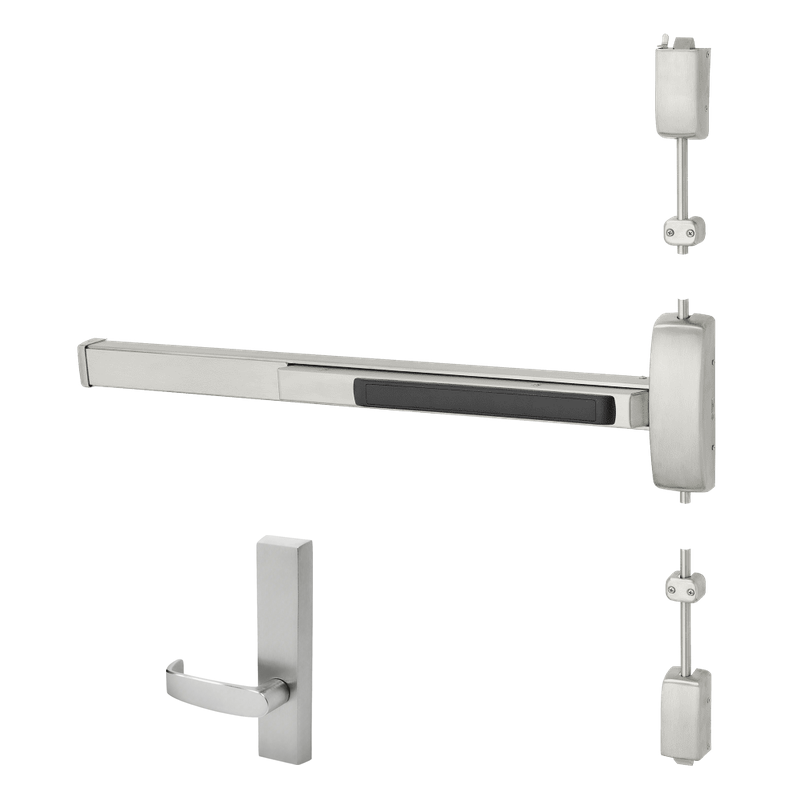

Sargent 8774-G-ETL-96-24V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 43-48" Width, 96" Ht Door

The Sargent 8774-G-ETL-96-24V is an electrified surface vertical rod exit device engineered for demanding commercial openings up to 96 inches in height and 43 to 48 inches wide. Built with fail secure operation, it keeps the latch locked during a power loss, making it ideal for perimeter doors and controlled-access entries. The device pairs with the G (ETL) electric latch retraction trim and operates on 24V, allowing smooth integration with access control and remote release systems. With its rugged construction and Grade 1 performance, this exit device delivers reliable security and consistent egress for high-traffic institutional and commercial applications.

Features

• Electrified surface vertical rod design for top and bottom latching on tall doors.
• Fail secure operation keeps the door locked when power is interrupted.
• Sized for doors measuring 43 to 48 inches wide and up to 96 inches high.
• Operates on 24V for compatibility with access control systems.
• G (ETL) electric latch retraction allows remote and momentary release.
• Grade 1 rated for heavy-duty commercial and institutional use.

Functional Details

The electric latch retraction function allows the latch bolts to be retracted electrically, enabling remote unlocking and momentary access control. In fail secure mode, the device remains locked during a power failure, ensuring security while still permitting free egress from the inside at all times.

Included Components

This device ships with the surface-mounted vertical rod mechanism, top and bottom latch assemblies, and the required mounting hardware for standard installation on compatible 96-inch doors.
