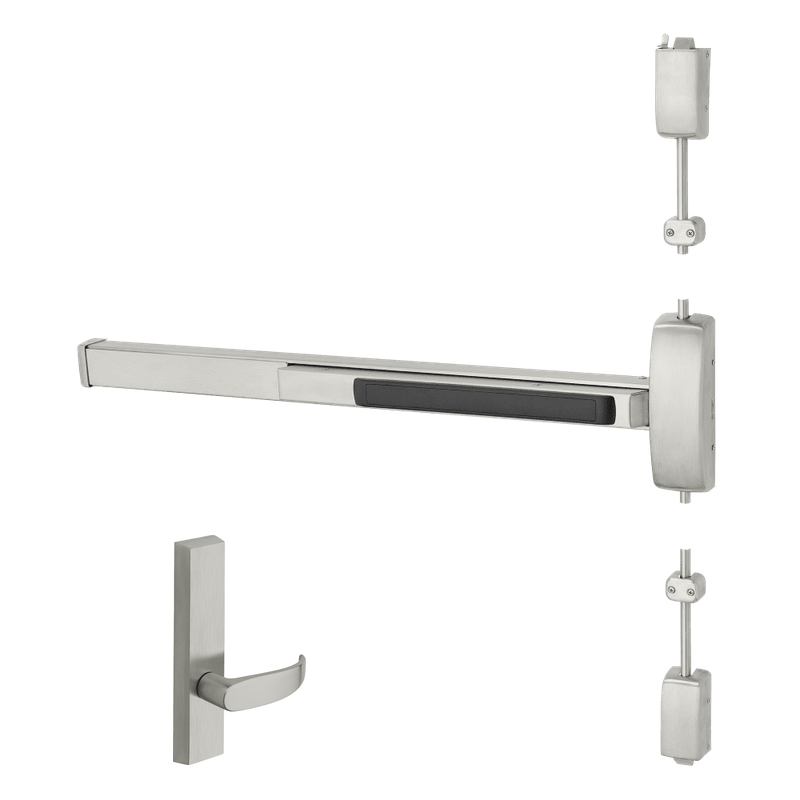

Sargent 8774-G-ETP-96-12V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 43-48" Width, 96" Ht Door

The Sargent 8774-G-ETP-96-12V is a heavy-duty electrified surface vertical rod exit device engineered for demanding commercial and institutional openings. Sized for doors measuring 43" to 48" wide and 96" tall, this fail secure unit keeps the opening locked during a power loss while permitting free egress from the inside at all times. The ETP trim with the G (Gull) lever and 12V DC electrification makes it well suited for access-controlled entrances that depend on remote unlocking. Carrying an ANSI/BHMA Grade 1 rating, it delivers the durability, reliability, and code compliance expected in high-traffic environments where life safety and controlled access are both priorities.

Features

• Electrified surface vertical rod exit device built for doors 43"–48" wide and 96" tall.
• Fail secure electrical function keeps the door secured when power is lost.
• Operates on 12V DC for integration with access control systems.
• ETP electrified trim with the G (Gull) lever provides controlled outside access.
• ANSI/BHMA Grade 1 rated for heavy-duty commercial use.
• Surface-mounted top and bottom rods deliver secure two-point latching.
• Free egress at all times for life-safety compliance.

Functional Details

In the fail secure configuration, the outside trim remains locked when power is removed, requiring a valid credential or key to gain entry, while the push bar always permits immediate egress from the inside.

• Electrically Locked (Fail Secure): Outside trim is locked when power is removed.
• Key retracts latch bolt for mechanical override.
• Inside lever or push pad always allows free egress.

Trim Details

The ETP electrified trim uses the G (Gull) lever design to manage access from the exterior. When energized and unlocked, the lever retracts the latch to allow entry; when de-energized, the lever remains rigid and the door stays secured.
