Sargent 8774-J-ETJ-96-24V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 37-42" Wd, 96" Ht Door

The Sargent 8774-J-ETJ-96-24V is a heavy-duty electrified surface vertical rod exit device designed for demanding commercial and institutional entrances. Built to fit doors from 37 to 42 inches wide and up to 96 inches tall, it runs on 24V DC in a fail secure configuration, keeping the opening locked during a power loss while still allowing free egress from the inside. This device combines the proven 8700 Series vertical rod chassis with the ETJ electrified J design lever trim for controlled, code-compliant access. Certified to ANSI/BHMA Grade 1 standards, it delivers durable construction and dependable electrified control for access-managed openings in high-traffic facilities.

Features

• Electrified surface vertical rod exit device from Sargent's 8700 Series for high-traffic commercial use.
• Fail secure operation keeps the door locked on the secure side when power is interrupted.
• Operates on 24V DC for easy integration with access control and electrified hardware systems.
• Sized for tall doors up to 96" in height and 37-42" in width.
• Includes ETJ electrified J design lever trim for secure outside access control.
• Surface-mounted top and bottom rods for straightforward installation and serviceability.
• Free egress at all times from the push-bar side for life-safety compliance.

Functional Details

In a fail secure setup, the outside lever trim stays locked when power is removed, requiring a valid credential or restored power to release the latch for entry. Egress from the inside is always available by pushing the exit bar, regardless of power status.

• Fail Secure (electrically locked / mechanically unlocked for egress).
• Electrified trim controls outside access; inside push bar always allows free egress.

Arm Type Details

This device uses a surface-mounted vertical rod mechanism that latches at both the top and bottom of the door frame, providing two-point locking for added security on tall openings. Both latch points retract simultaneously when the push bar is activated.

Included Components

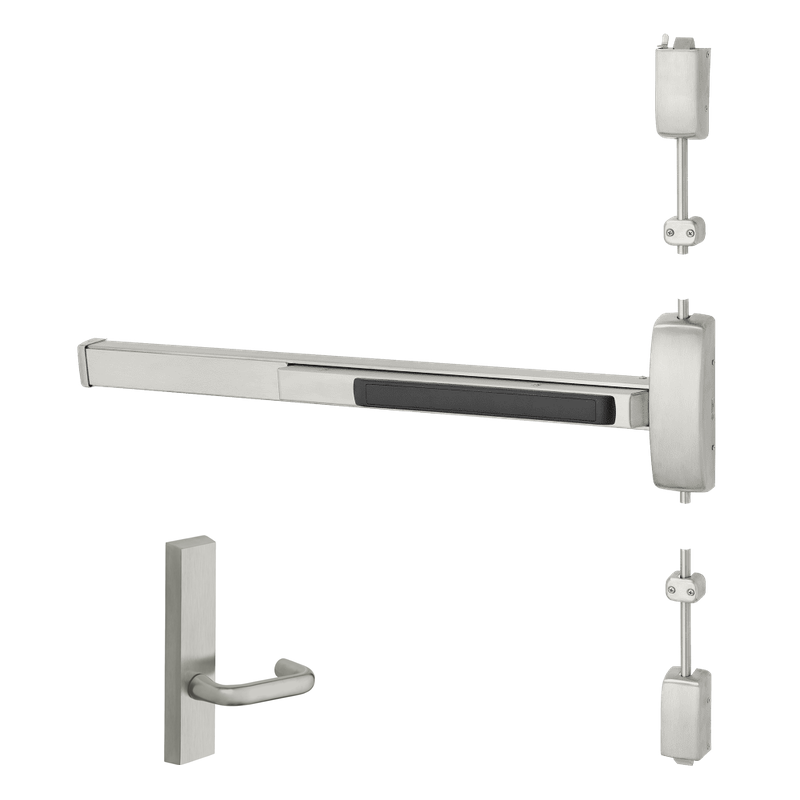

The assembly ships with the surface vertical rod exit device chassis, top and bottom latch rods, and the ETJ electrified J design lever trim for the outside of the door.
