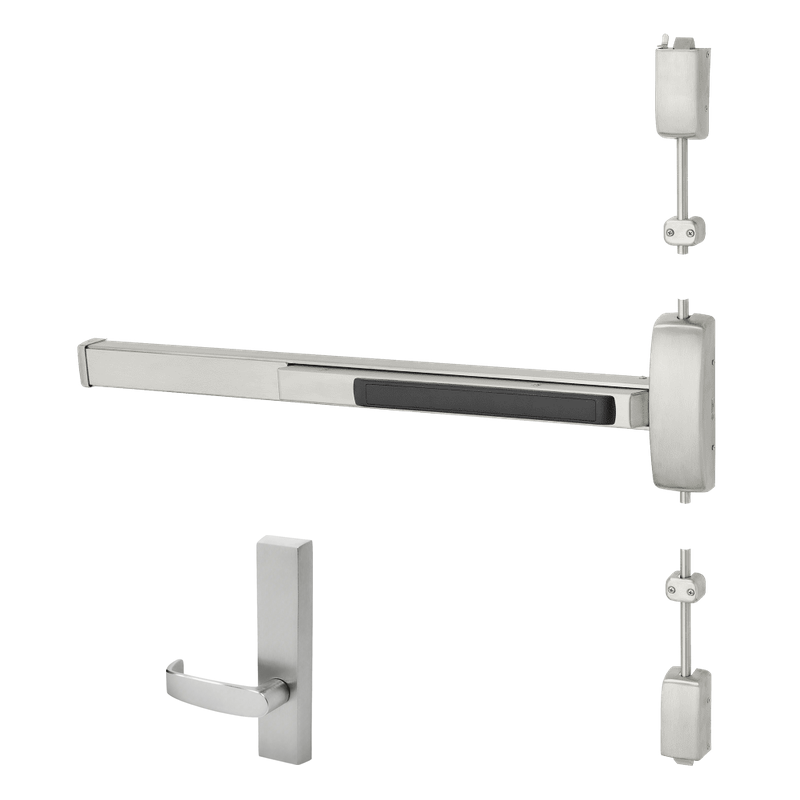

Sargent 8774-J-ETL-84-12V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 37-42" Width, 84" Ht Door

The Sargent 8774-J-ETL-84-12V is a heavy-duty electrified surface vertical rod exit device engineered for demanding commercial openings. Built as a fail secure unit, it keeps the outside trim locked when power is removed, making it a dependable choice for access control applications where security must hold during a power loss. Sized for doors measuring 37" to 42" wide and up to 84" tall, this device combines 12V electric latch retraction (ETL) with the J lever trim for smooth, authorized entry. As part of Sargent's respected 80 Series, it delivers the durability and performance expected in high-traffic environments while maintaining reliable free egress.

Features

• Electrified surface vertical rod exit device for added control over secured openings.
• Fail secure operation keeps outside trim locked when power is interrupted.
• Sized for doors 37" to 42" wide and up to 84" in height.
• ETL electric latch retraction allows remote unlatching for access control integration.
• Operates on 12V power for compatibility with common access control systems.
• J-style lever trim provides comfortable, ADA-friendly operation.
• Surface-mounted top and bottom rods for straightforward installation.

Functional Details

The ETL (Electric Latch Retraction) function electrically retracts the latch bolts, allowing the door to be pushed or pulled open without operating the trim. In fail secure mode, removing power leaves the outside trim locked, requiring a valid credential or key for entry while free egress is always available from the inside.

• Electric latch retraction retracts the latch(es) electrically for momentary or sustained operation.
• Fail secure: outside trim remains locked upon loss of power.
• Free egress at all times from the push side.

Arm Type Details

This is a surface vertical rod configuration, meaning the latching rods run along the surface of the door face to engage the top and bottom of the frame. This arrangement provides secure two-point latching and is well suited for pairs of doors or openings requiring vertical rod hardware.

Included Components

The device ships with the surface vertical rod exit mechanism, J lever electrified trim, top and bottom latch assemblies, strikes, and mounting hardware for installation on the specified door size.
