Sargent 8774-J-ETL-96-24V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 37-42" Width, 96" Ht Door

The Sargent 8774-J-ETL-96-24V is a heavy-duty electrified surface vertical rod exit device built for demanding commercial and institutional openings. Set up for fail secure operation, it keeps the outside trim locked during a power loss, making it a strong fit for access-controlled entrances where security matters most. This model fits doors measuring 37" to 42" wide and up to 96" tall, and its J (ETL) electrified lever trim runs on 24V. Manufactured to ANSI/BHMA Grade 1 standards, the 8774 series delivers dependable panic-rated egress while supporting remote electrical control, giving facility managers a durable, code-compliant choice for schools, hospitals, offices, and other high-traffic buildings.

Features

• Surface-mounted vertical rod design provides two-point latching at the top and bottom of the door.
• Electrified ETL lever trim allows remote locking and unlocking through an access control system.
• Fail secure configuration keeps outside trim locked when power is removed for added security.
• Sized for doors 37" to 42" wide and 96" tall to suit extra-tall openings.
• 24V operation for compatibility with standard low-voltage power supplies.
• Grade 1 rated construction for high-use commercial and institutional applications.

Functional Details

The fail secure electrified trim control keeps the outside lever locked without power and releases it only when the access control system energizes the device. This keeps the opening secure during a power outage while free egress is always available from the inside.

• Fail Secure (24V): Outside trim is locked when power is removed.
• Energizing the trim unlocks the outside lever for controlled access.
• Free egress is always available from the inside by pushing the pushpad.

Arm Type Details

This device uses a surface-applied vertical rod mechanism. Pressing the push rail actuates both the top and bottom latch bolts simultaneously, engaging the frame head and threshold for secure two-point latching along the vertical edge of the door.

Included Components

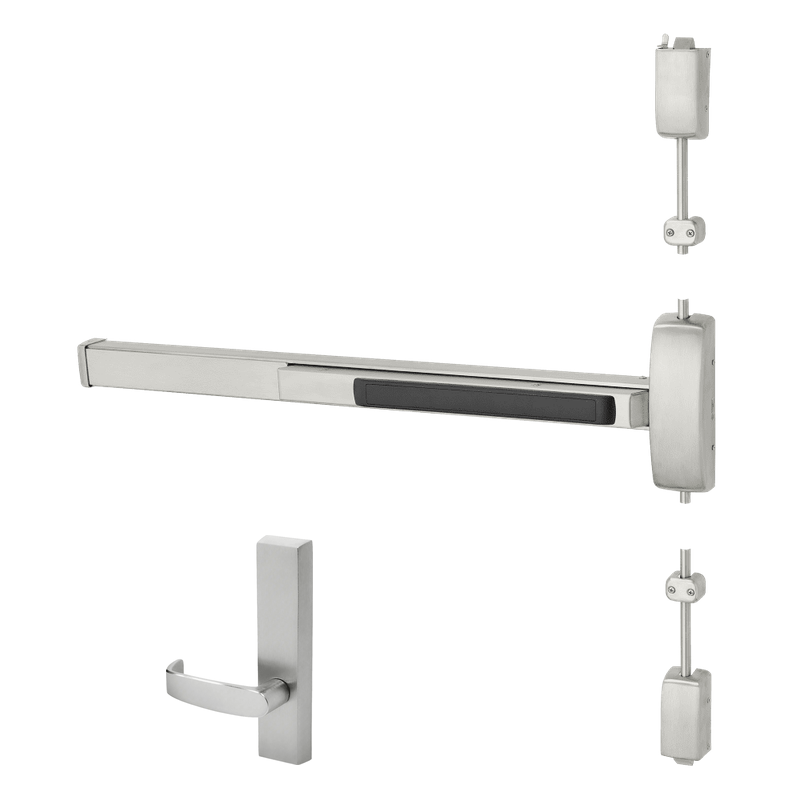

The 8774-J-ETL assembly includes the surface vertical rod exit device chassis, top and bottom latch assemblies with vertical rods, and the J (ETL) electrified lever trim. Mounting hardware is included for installation.
