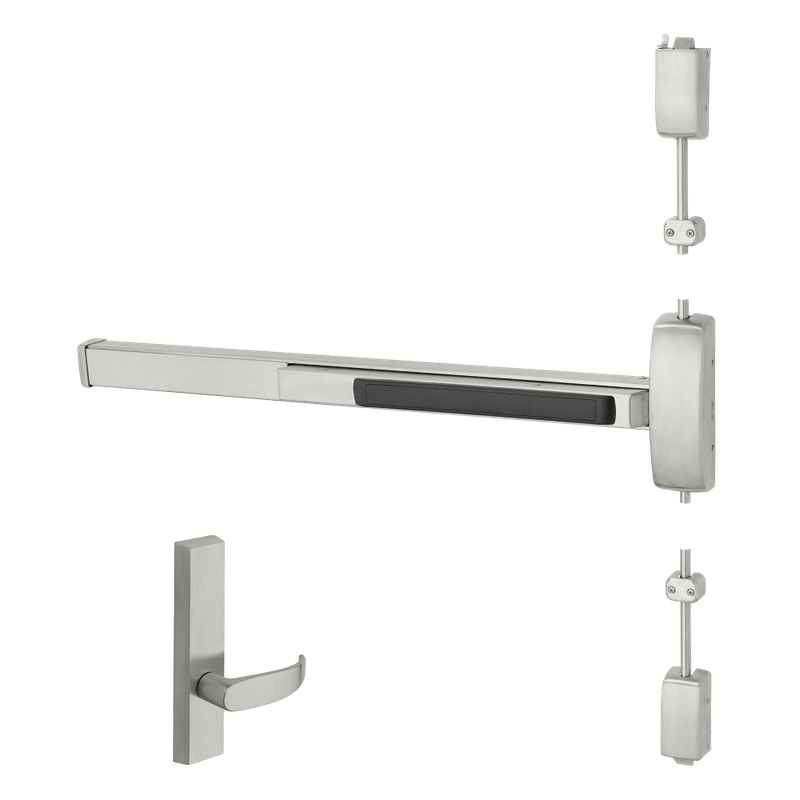

Sargent 8774-J-ETP-84-12V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 37-42" Wd, 84" Ht Door

The Sargent 8774-J-ETP-84-12V is an electrified surface vertical rod exit device designed for high-traffic commercial openings that demand both dependable egress and controlled access. Built on the rugged 80 Series platform, it fits doors measuring 37" to 42" wide and up to 84" tall, and combines the J escutcheon with ETP electrified lever trim for keyed and electronic entry. Operating on 12V DC in a fail secure configuration, the outside lever stays locked during a power loss while free egress remains available from the inside at all times. It's a strong fit for schools, healthcare facilities, and office buildings where life safety and security need to work together.

Features

• Electrified surface vertical rod exit device engineered for Grade 1 commercial performance.
• Fail secure operation keeps the outside trim locked when power is removed.
• Operates on 12V DC for compatibility with common access control systems.
• Sized for doors 37" to 42" wide and 84" tall.
• J design escutcheon trim with the ETP electrified lever for keyed and electronic access.
• Top and bottom surface-mounted vertical rods provide two-point latching for added security.

Functional Details

In a fail secure configuration, the outside lever remains locked when power is interrupted, keeping the door secured against unauthorized entry. Applying 12V DC releases the trim to allow controlled access, while the push rail always permits free egress from the secure side regardless of power status.

• Electrically locks and unlocks outside trim.
• Fail secure: outside trim is locked when power is off.
• Free egress at all times from the inside.

Arm Type Details

This device uses a surface-mounted vertical rod mechanism with latch points at the top and bottom of the door. The rods are concealed within surface channels along the door's edge, engaging strikes at the header and threshold for secure two-point latching while maintaining a clean installed appearance.

Included Components

The device ships as a complete surface vertical rod exit device with the ETP electrified lever trim, J escutcheon, top and bottom vertical rods, and the mounting hardware required for a standard installation.
