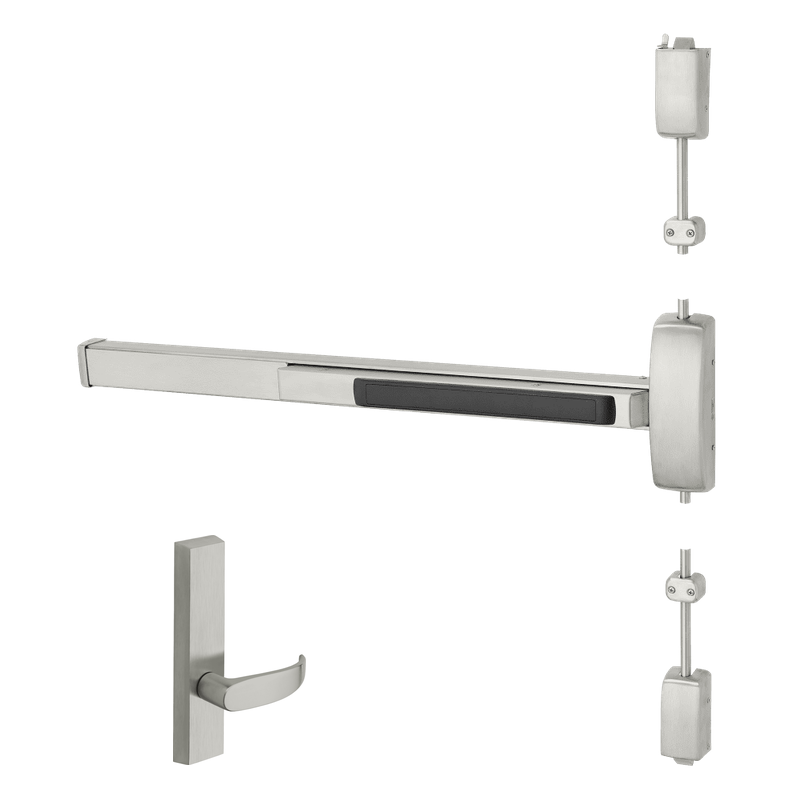

Sargent 8774-J-ETP-84-24V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 37-42" Width, 84" Ht Door

The Sargent 8774-J-ETP-84-24V is a heavy-duty electrified surface vertical rod exit device engineered for demanding commercial and institutional openings. Built to fit doors measuring 37" to 42" wide and 84" tall, it pairs dependable panic exit function with integrated electrified access control. This model runs in a fail secure configuration, so the outside trim stays locked during a power loss while free egress remains available from the inside at all times. Operating at 24V and matched with ETP electrified lever trim, it suits high-traffic environments where security and life-safety compliance both matter. Surface-mounted vertical rods deliver secure two-point latching at the top and bottom of the door.

Features

• Electrified surface vertical rod exit device providing two-point latching security.
• Fail secure operation keeps outside trim locked when power is removed.
• Sized for doors 37" to 42" wide and up to 84" in height.
• Runs on 24VDC for compatibility with standard access control systems.
• Includes ETP electrified lever trim for controlled outside entry.
• ANSI/BHMA Grade 1 construction built for heavy-duty use.
• Maintains free, immediate egress from the inside at all times.

Functional Details

The fail secure electrified function controls the outside trim through the 24V solenoid. When energized, the outside lever is released for entry; when power is removed, the outside lever remains locked. Egress through the interior push bar is never affected.

• Fail secure: outside trim locked when de-energized.
• Free egress at all times from the inside.
• 24VDC operation for electrified access control.

Arm Type Details

This device uses a surface-mounted vertical rod configuration. Rods extend to engage latch points at the top and bottom of the door frame, securing the opening at two points and improving stability on tall or oversized doors.

Included Components

The 8774-J-ETP-84-24V ships with the surface vertical rod exit device chassis, ETP electrified lever trim, top and bottom latch assemblies, and mounting hardware for installation on 84" doors.
