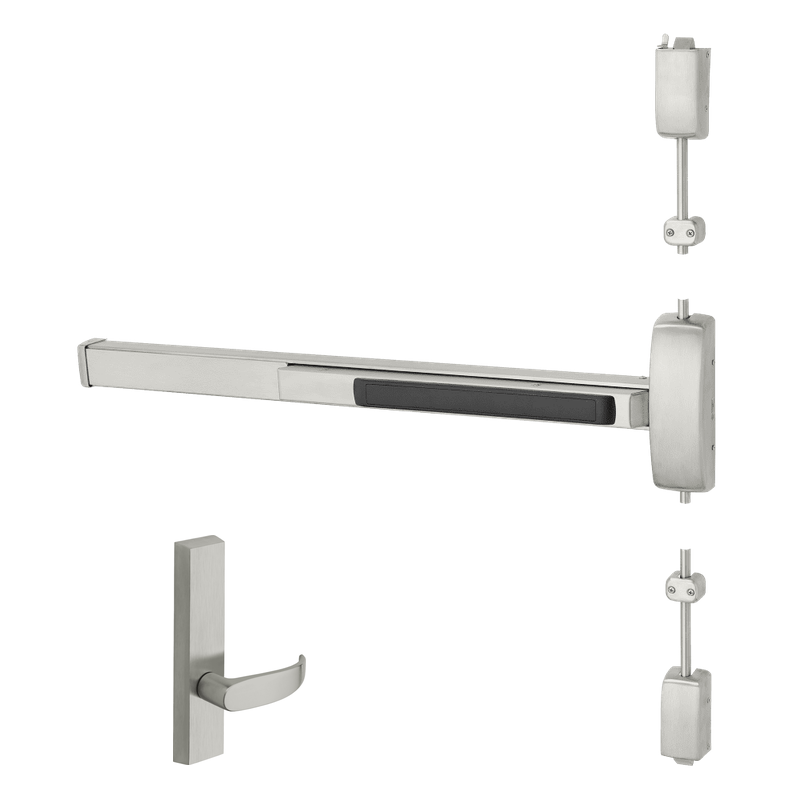

Sargent 8774-J-ETP-96-24V Electrified Surface Vertical Rod Exit Device, Fail Secure, For 37-42" Width, 96" Ht Door

The Sargent 8774-J-ETP-96-24V is a heavy-duty electrified surface vertical rod exit device built for wide, tall openings measuring 37 to 42 inches in width and up to 96 inches in height. Running on 24V DC in a fail secure configuration, it keeps the outside lever locked during a power loss to maintain security. Combined with the ETP electrified trim and the J lever design, this Grade 1 device delivers dependable access control for high-traffic commercial and institutional doors. Manufactured to Sargent's exacting standards, it pairs rugged construction with smooth operation on openings that demand both reliable life-safety egress and controlled entry.

Features

• Electrified surface vertical rod exit device designed for doors 37" to 42" wide and up to 96" tall.
• Fail secure electrical function keeps the outside trim locked when power is removed.
• Operates on 24V DC for compatibility with most access control power supplies.
• Equipped with ETP electrified trim and the J lever design for controlled entry.
• Grade 1 construction built for durability in high-use commercial applications.
• Free egress is always available from the push side for life-safety compliance.

Functional Details

The fail secure (8774) configuration electrifies the outside trim so the lever stays locked when de-energized. Applying 24V DC power releases the trim for authorized entry through the access control system, while the push rail allows free egress at all times.

• Fail Secure (Electrically Locked): Outside trim is locked when power is removed.
• Energize to unlock outside trim for controlled entry.
• Free egress at all times via the exit device push rail.

Arm Type Details

As a surface-mounted vertical rod device, latching is achieved through top and bottom rods that engage strikes at the head and sill of the frame, securing the door at two points for added stability on tall openings.
