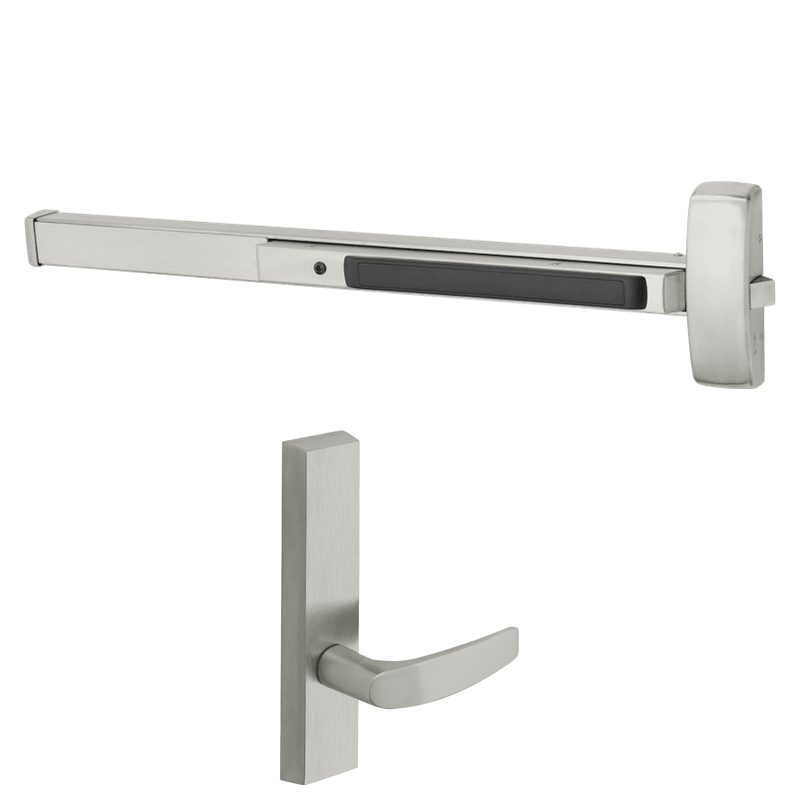

Sargent 8873-G-ETB-24V Rim Exit Device, Fail Safe Power Off Unlocks Lever, ET Control, B Lever, No Cylinder, 43-48" Dr Width, Hex Key Dogging, 24VAC/DC Electrified, Grade 1

The Sargent 8873-G-ETB-24V is a Grade 1 electrified rim exit device built for wide openings measuring 43 to 48 inches. It uses an ETB electrified trim control with a B lever and operates in a fail safe configuration, meaning that when power is removed the outside lever unlocks for free entry. Powered by 24VAC or 24VDC, this unit includes hex key dogging for mechanical push-pad hold-down and ships without a cylinder for installer flexibility. Designed for high-traffic commercial and institutional applications, it delivers dependable access control, reliable latching, and durable performance where secure egress and remote locking are required.

Features

• Grade 1 rim exit device rated for heavy-duty commercial use.
• Fail safe operation unlocks the outside lever when power is removed.
• 24VAC/DC electrified trim for integration with access control systems.
• ETB electrified trim control paired with the B lever design.
• Sized for doors measuring 43 to 48 inches in width.
• Hex key dogging allows the push pad to be retained for push/pull operation.
• Supplied without a cylinder for flexible keying options.

Functional Details

In a fail safe arrangement, the outside lever remains locked while energized and releases to allow entry when power is interrupted. This makes the device well suited for openings that must permit access during a power loss while always allowing free egress from the inside.

• Fail safe (power off) unlocks the outside lever.
• Energized in normal operation to keep the lever locked.
• Free egress at all times from the inside push pad.

Included Components

The device arrives as a complete rim exit unit with ETB electrified trim and the B lever. A cylinder is not included and should be ordered separately to match the facility's keying requirements.
