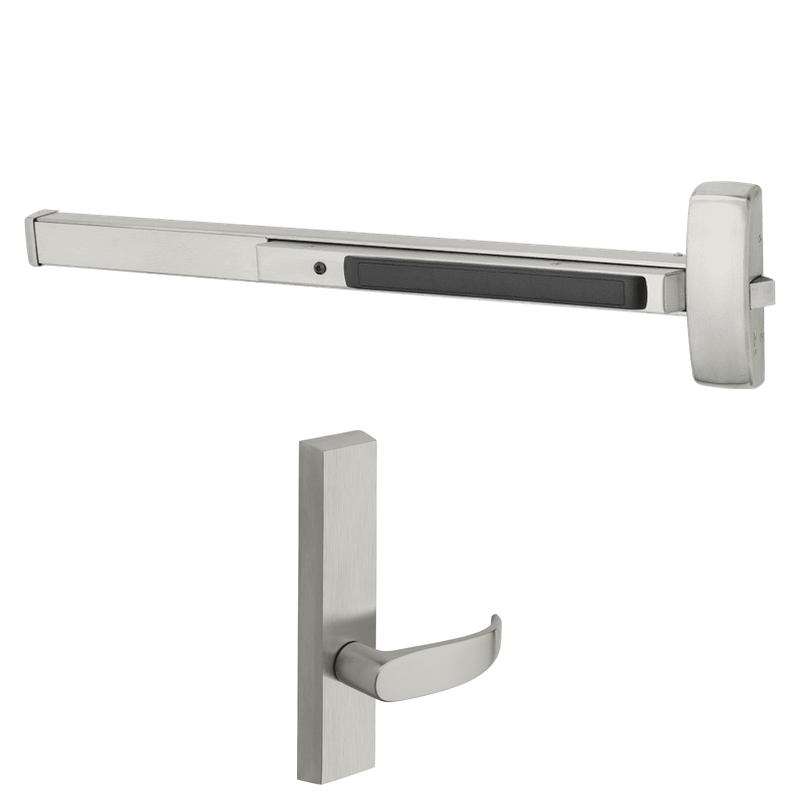

Sargent 8873-G-ETP-12V Rim Exit Device, Fail Safe Power Off Unlocks Lever, ET Control, P Lever, No Cylinder, 43-48" Dr Width, Hex Key Dogging, 12VAC/DC Electrified, Grade 1

The Sargent 8873-G-ETP-12V is a Grade 1 electrified rim exit device built for high-traffic openings that require controlled access with reliable egress. Configured as a fail safe unit, it unlocks the outside lever when power is removed, making it ideal for life-safety applications where free access is critical during an outage. This model features the ET lever trim with the P lever design and ships without a cylinder, giving installers flexibility on keying. Sized for 43 to 48 inch wide doors and supplied with hex key dogging, the 8873 operates on 12VAC/DC and delivers the durable push-rail performance Sargent is known for across commercial and institutional projects.

Features

• Grade 1 rim exit device rated for heavy commercial and institutional use.
• Fail safe electrified function unlocks the outside lever when power is removed.
• ET escutcheon trim paired with the P lever handle design.
• Supplied without a cylinder for keying flexibility during installation.
• Fits door widths from 43 to 48 inches.
• Hex key dogging allows the push rail to be held in the depressed position for push/pull operation.
• Operates on 12VAC or 12VDC for compatibility with common access control power supplies.

Functional Details

As a fail safe electrified device, the outside lever remains locked while energized and automatically unlocks when power is interrupted, allowing entry from the outside without a key during a power loss. The push rail always permits free egress from the inside.

• Fail Safe (Power Off Unlocks Lever)
• Outside lever is locked when energized and unlocked when de-energized
• Free egress at all times from the inside

Arm Type Details

The device uses ET (Escutcheon Trim) control with the P lever, providing a traditional escutcheon-mounted lever that retracts the latch when the device is unlocked. The lever returns to its rest position after each use.

Included Components

Ships as a rim exit device with G (ET) lever trim, P lever design, mounting hardware, and hex key dogging. A cylinder is not included and must be ordered separately.
