Description

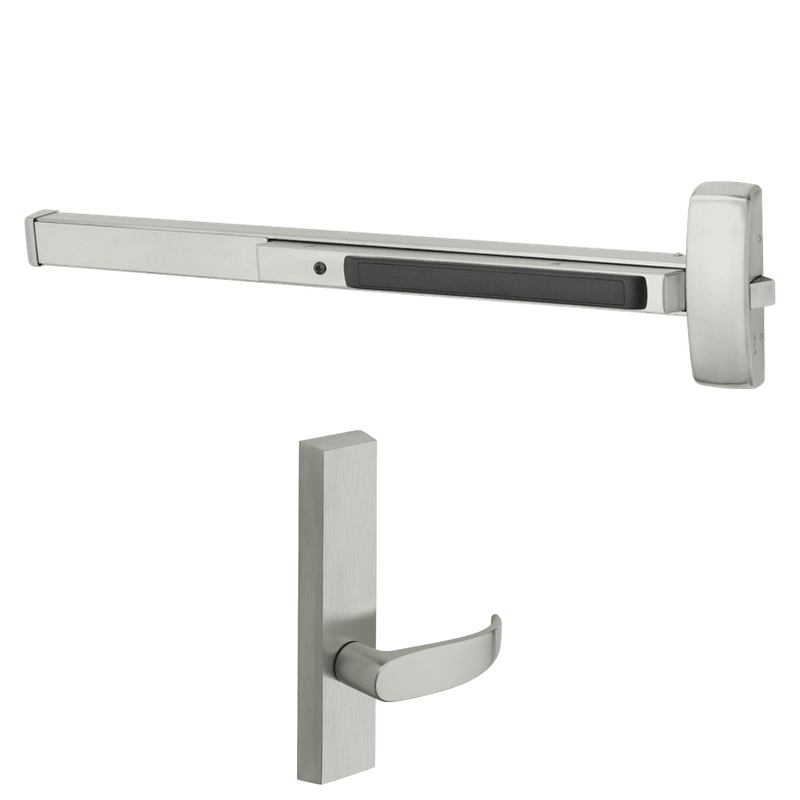

Sargent 8873-G-ETP-24V Rim Exit Device, Fail Safe Power Off Unlocks Lever, ET Control, P Lever, No Cylinder, 43-48" Dr Width, Hex Key Dogging, 24VAC/DC Electrified, Grade 1
The Sargent 8873-G-ETP-24V is a Grade 1 electrified rim exit device built for demanding commercial openings up to 48 inches wide. It pairs dependable panic exit function with electrified access control, using a fail safe design that unlocks the outside ET lever when power is removed. The ETP trim features the contoured P lever for comfortable, code-compliant operation, while hex key dogging allows the device to be held in a retracted state for push/pull traffic during busy hours. Operating on 24VAC/DC, this no-cylinder configuration integrates smoothly with access control and life-safety systems, making it a reliable choice for schools, offices, and institutional facilities.
Features
- Grade 1 rim exit device rated for heavy-duty commercial and institutional use.
- Fail safe operation unlocks the outside lever when power is interrupted for secure egress during emergencies.
- ET control trim with the ergonomic P lever design.
- Sized for doors measuring 43 to 48 inches in width.
- Hex key dogging holds the latch retracted for continuous push/pull access.
- Operates on 24VAC or 24VDC power for flexible system integration.
- No-cylinder configuration for use with existing access control hardware.
Functional Details
As a fail safe electrified device, the outside lever is locked when energized and automatically unlocks when power is removed, allowing entry during power loss while free egress is always maintained from the inside.
- Fail Safe: Power off unlocks the outside lever.
- Outside lever controlled electrically; inside push bar provides free egress at all times.
- 24VAC/DC operation.
Arm Type Details
The ETP trim utilizes the P lever, a smooth contoured lever that returns to the horizontal position and meets accessibility requirements for ease of operation.
Included Components
This configuration ships as an electrified rim exit device with ET control trim and P lever, no cylinder included.
Product Specifications
| Manufacturer | Sargent |
| SKU | 8873-G-ETP-24V |
| Device Type | Rim Exit Device |
| Grade | ANSI/BHMA Grade 1 |
| Trim / Function | Electrified ET Control, Fail Safe |
| Lever Style | P Lever |
| Dogging Type | Hex Key Dogging |
| Cylinder | No Cylinder |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL Listed Panic Hardware |
| Limited Warranty | Yes |
Technical Specifications
| Voltage | 24VAC/DC |
| Function | Fail Safe (Power Off Unlocks Lever) |
| Door Width Range | 43 to 48 inches |
| Device Series | 8800 Series |
| Mounting | Rim |
| Latchbolt Type | Deadlatching Pullman Latch |
| Latchbolt Throw | 3/4 inch |
| Door Thickness | 1-3/4 inch standard |
| Dogging | Hex Key |
| ANSI Standard | ANSI/BHMA A156.3 |
| Handing | Non-handed |
