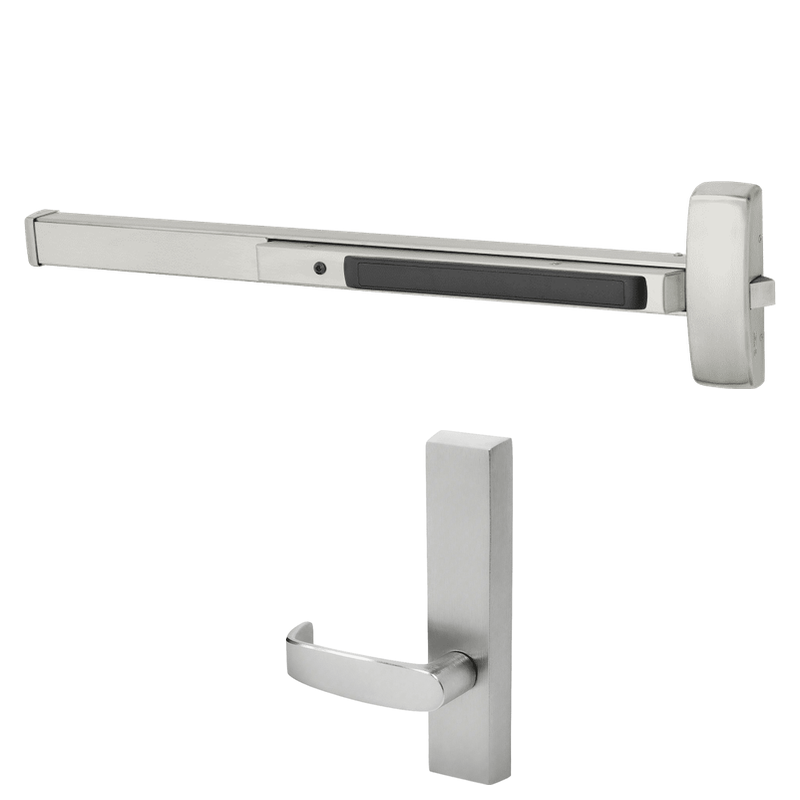

Sargent 8873-J-ETL-12V Rim Exit Device, Fail Safe Power Off Unlocks Lever, ET Control, L Lever, No Cylinder, 37-42" Dr Width, Hex Key Dogging, 12VAC/DC Electrified, Grade 1

The Sargent 8873-J-ETL-12V is a Grade 1 electrified rim exit device engineered for dependable security on wider openings measuring 37 to 42 inches. Built as a fail-safe unit, it uses the ETL electrified trim control so that when power is removed, the outside lever unlocks to permit free access—an ideal configuration for stairwells, controlled egress points, and emergency routes. This model ships with the L lever design and no cylinder, and features convenient hex key dogging to hold the latch retracted during high-traffic periods. Operating on 12VAC/DC, it integrates cleanly with access control systems while maintaining reliable code-compliant egress. A solid choice for commercial and institutional doors.

Features

• Fail-safe operation unlocks the outside lever when power is removed for secure, code-compliant egress.
• ETL electrified trim with the L lever design for smooth operation and access control integration.
• Designed to fit door widths from 37 to 42 inches.
• Hex key dogging allows the push rail to be held down for push/pull function.
• Operates on 12VAC/DC electrical supply.
• Supplied without a cylinder for flexible keying options.
• Grade 1 rated for heavy-duty commercial performance.

Functional Details

As a fail-safe electrified device, the 8873 keeps the outside lever locked while energized and releases it to allow entry whenever power is interrupted. This behavior ensures that occupants and responders can always gain access during a power loss while free egress remains available at all times from the inside.

• Fail Safe: Outside trim is unlocked when power is removed.
• Free egress at all times from the inside.
• 12VAC/DC electrically controlled outside trim.

Included Components

The device includes the rim exit mechanism, the ETL electrified L lever trim, and integrated hex key dogging hardware. A cylinder is not included and must be ordered separately if required.
