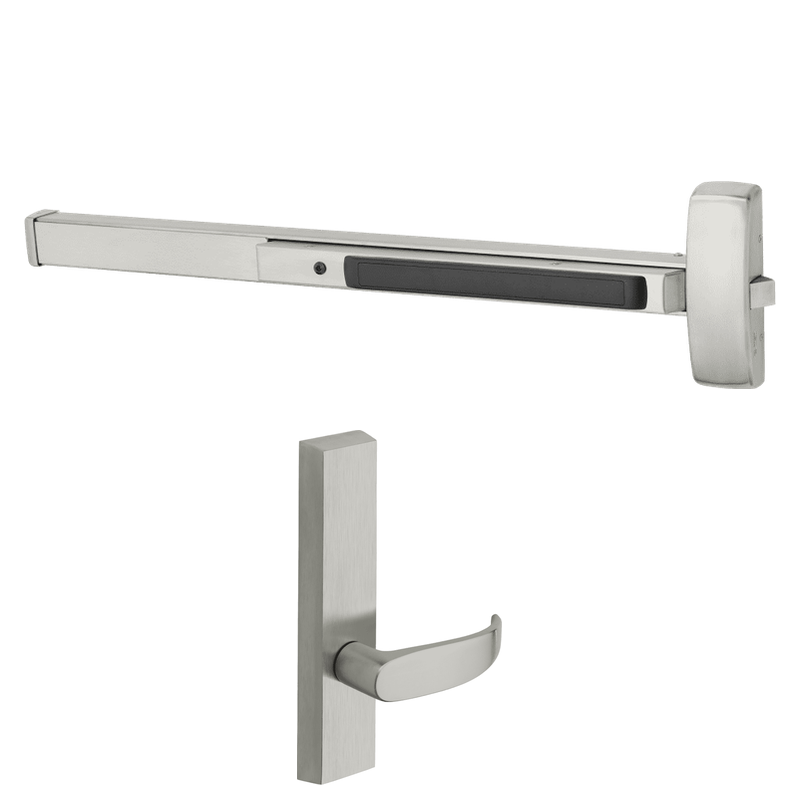

Sargent 8873-J-ETP-24V Rim Exit Device, Fail Safe Power Off Unlocks Lever, ET Control, P Lever, No Cylinder, 37-42" Dr Width, Hex Key Dogging, 24VAC/DC Electrified, Grade 1

The Sargent 8873-J-ETP-24V is a Grade 1 electrified rim exit device built for demanding commercial and institutional openings that require controlled access and reliable life-safety performance. Configured as a fail-safe unit, it releases the outside lever when power is removed, making it a dependable choice for stairwells, corridors, and secured exits where occupants must retain egress during a power loss. This model features the ET trim with the P lever design, supports doors from 37 to 42 inches in width, and includes hex key dogging for convenient mechanical hold-back. It operates on 24VAC/DC and ships without a cylinder for flexible keying.

Features

• Grade 1 rated rim exit device engineered for heavy-duty, high-traffic applications.
• Fail-safe operation unlocks the outside lever when power is removed for secure egress.
• ET control trim paired with the P lever design for comfortable, ADA-friendly operation.
• Fits door widths from 37 to 42 inches.
• Hex key dogging allows the latch to be held retracted for push/pull operation.
• Supplied with no cylinder, allowing you to match existing keying systems.
• Operates on 24VAC/DC electrified power.

Functional Details

In a fail-safe configuration, the electrified trim is unlocked when power is removed, allowing free access from the exterior while the exit device always permits free egress from the interior. Applying power locks the outside lever to restrict entry.

• Fail safe: power off unlocks the outside lever.
• Electrified ET trim controlled remotely for access control integration.
• Continuous duty solenoid for extended operation.

Arm Type Details

This device uses the ET electrified trim with the P lever, which provides a contoured, easy-to-grip lever that meets accessibility requirements. The lever controls entry only; interior egress is always available through the push bar.

Included Components

The device ships as a complete rim exit device with ET-P electrified trim and hex key dogging hardware. A cylinder is not included and must be ordered separately to match your keying requirements.
