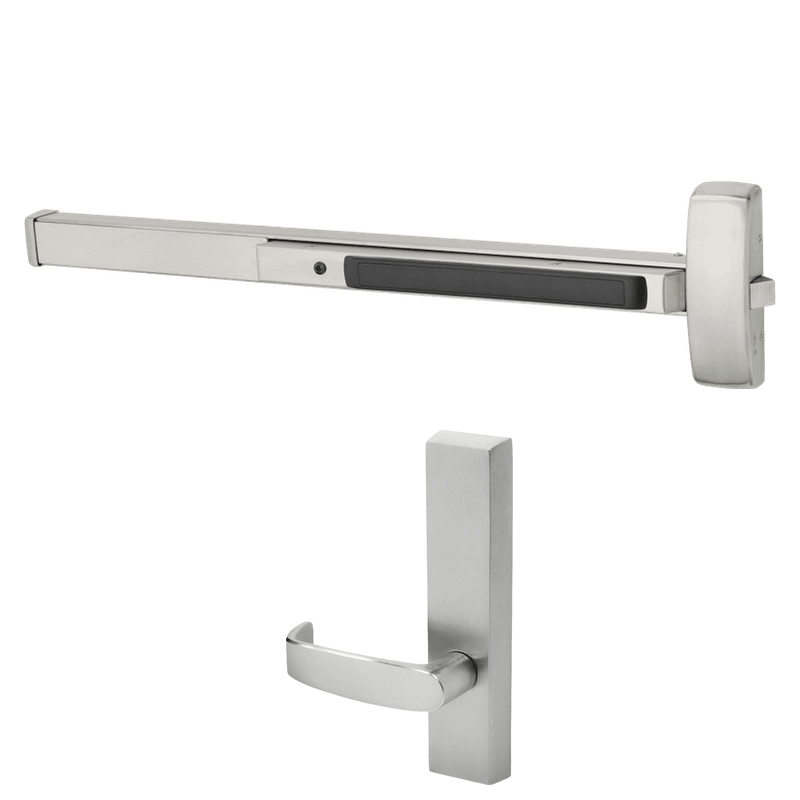

Sargent 8874-J-ETL-24V Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, No Cylinder, For 37-42 Inch Width Door, Hex Key Dogging

The Sargent 8874-J-ETL-24V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that demand secure, controlled access. This fail secure model keeps the outside ETL lever trim locked when power is removed, so the door stays secured during a power loss while free egress is always maintained from the inside. Designed for doors ranging from 37 to 42 inches wide, it operates on 24V and features hex key dogging for convenient push-pull operation during business hours. The J (ETL) lever trim ships without a cylinder, giving you flexibility to pair your preferred keying system with this durable Grade 1 device.

Features

• Electrified rim exit device engineered for Grade 1 commercial performance.
• Fail secure operation locks the outside lever when power is removed.
• Fits doors from 37 to 42 inches in width.
• Operates on 24V DC power.
• ETL (J) lever trim provides durable, code-compliant access control.
• Supplied without a cylinder for keying flexibility.
• Hex key dogging allows the latch to be held retracted for push-pull use.
• Provides continuous free egress for life-safety compliance.

Functional Details

As a fail secure device, the outside lever trim remains locked when power is interrupted, requiring valid credentials or a key to gain entry. Applying power releases the trim to allow controlled access, while the inside push bar always permits immediate exit.

• Fail Secure: Power off locks the outside lever.
• Energizing the device unlocks the outside trim for entry.
• Free egress at all times from the inside.

Included Components

This device includes the 8800 series rim exit chassis, the J (ETL) electrified lever trim, and standard mounting hardware. A mortise or rim cylinder must be ordered separately to complete keyed access.
