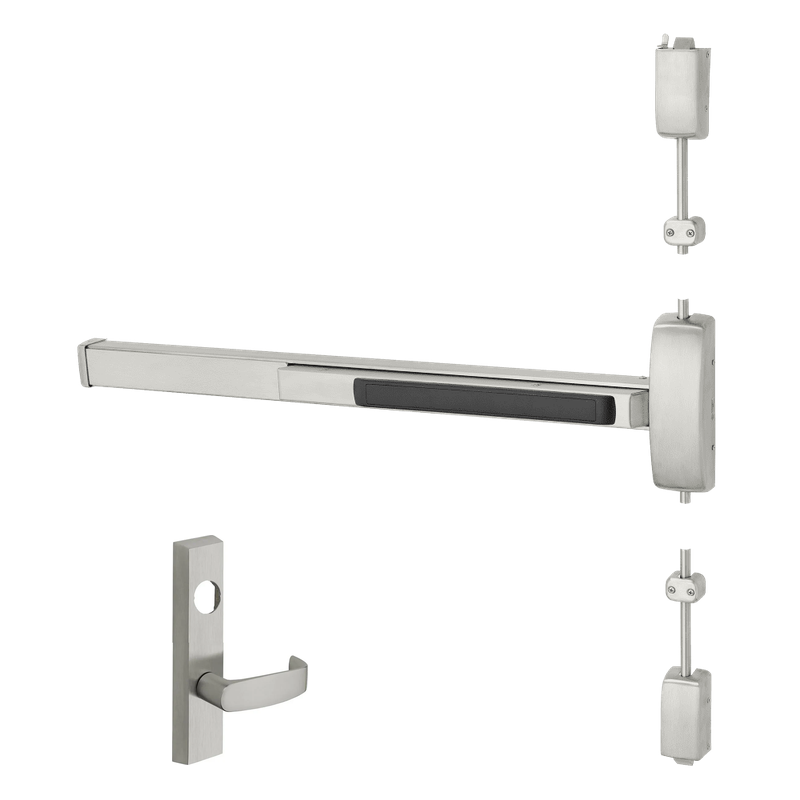

Sargent 56-LC-12-8706-F-ETL-96 Electrified Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 33-36" Width, 96" Ht Door, Less Cylinder

The Sargent 56-LC-12-8706-F-ETL-96 is an electrified fire rated surface vertical rod exit device engineered for demanding commercial and institutional openings. Built for doors measuring 33" to 36" wide and up to 96" in height, it pairs the reliable 8700 Series mechanism with an electrified trim (ETL) configured for storeroom function. The fire rating makes it suitable for labeled openings where life safety and code compliance are essential, while the surface vertical rod design secures both top and bottom of the door. Shipped less cylinder, it allows you to match your existing keyway and keying system for seamless integration into your facility's hardware program.

Features

• Surface-mounted vertical rod design latches at both the top and bottom of the door for added security.
• Fire rated construction (F) for use on labeled fire door assemblies.
• Electrified lever trim (ETL) supports access control integration.
• Storeroom function keeps the outside lever locked while allowing free egress at all times.
• Sized for doors 33" to 36" wide and up to 96" tall.
• Supplied less cylinder (LC) to accommodate your preferred keying.

Functional Details

The storeroom function (56) keeps the outside lever continuously locked. Entry requires a key, and the latch is retracted by the key only; the outside lever is always fixed. Free egress is always available from the inside by pushing the touchbar.

• Outside lever is always locked.
• Key retracts latch for entry.
• Free egress at all times from the inside.

Arm Type Details

This device uses a surface-mounted vertical rod assembly. Depressing the touchbar simultaneously retracts the top and bottom latch bolts, releasing the door at two points for secure, code-compliant operation on fire rated openings.

Included Components

The device ships with the exit device chassis, electrified lever trim (ETL), and surface vertical rod hardware. The cylinder is not included and must be ordered separately to match your keying requirements.
