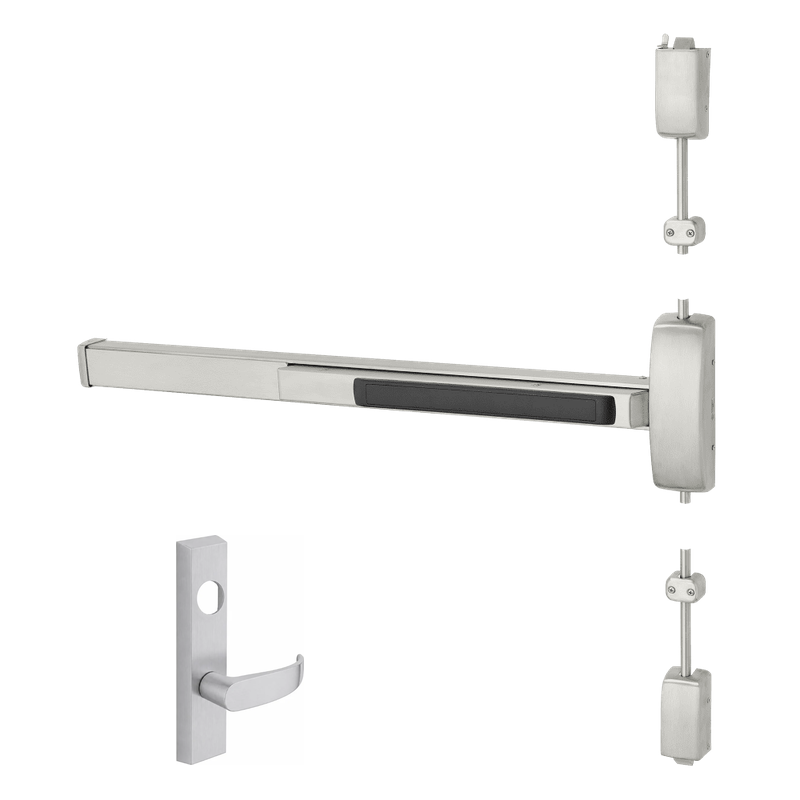

Sargent 56-LC-12-8706-F-ETP-96 Electrified Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 33-36" Width, 96" Ht Door, Less Cylinder

The Sargent 56-LC-12-8706-F-ETP-96 is a fire-rated surface vertical rod exit device engineered for demanding commercial and institutional openings. Built for doors measuring 33–36" wide and up to 96" tall, this device pairs dependable panic egress with electrified storeroom (ETP) access control. The 8706 trim operates in storeroom function, keeping the outside lever locked at all times while allowing free egress from the interior. Supplied less cylinder (LC) and finished for long-term durability, it suits schools, hospitals, and high-traffic buildings where life safety and secure entry must work together.

Features

• Fire-rated surface vertical rod construction ideal for labeled door assemblies.
• Storeroom function keeps the exterior lever locked while permitting free interior egress.
• Electrified ETP trim allows remote access control integration.
• Sized for 33–36" wide doors and tall 96" height applications.
• Supplied less cylinder for flexible keying with your preferred cylinder.
• Heavy-duty components designed for high-traffic commercial environments.

Functional Details

In the 56 electrified storeroom configuration, the outside lever remains locked until the electrified trim is energized or a key is used. Depressing the pushbar always retracts the latches for safe, immediate egress, independent of the electrical state.

• Outside trim is continuously locked.
• Latchbolt retracted by key or by energizing the trim.
• Free egress at all times from the inside.
• Fail secure operation maintains security on power loss.
