Sargent 56-LC-12-8706-G-ETJ-96 Electrified Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 96" Ht Door, Less Cylinder

The Sargent 56-LC-12-8706-G-ETJ-96 is an electrified fire rated surface vertical rod exit device built for demanding commercial and institutional openings. Configured for storeroom function with the ETJ lever trim, this device suits doors measuring 43 to 48 inches wide and up to 96 inches in height. The electrified 56 option provides remote control of the outside trim, while the fire rated construction makes it appropriate for labeled fire door assemblies. Supplied less cylinder (LC), it gives installers the flexibility to specify their preferred mortise cylinder. Backed by Sargent's reputation for rugged, dependable panic hardware, this unit delivers reliable life-safety egress and secure access control.

Features

• Surface-mounted vertical rod design for both top and bottom latching on tall doors.
• Fire rated construction for use on labeled fire door assemblies where no dogging is permitted.
• Electrified 56 function allows remote electric control of the outside lever trim.
• Storeroom function keeps the outside lever locked while free egress is always available from the inside.
• ETJ lever design trim provides a durable, comfortable grip for everyday use.
• Sized for wide doors from 43" to 48" and tall openings up to 96".
• Supplied less cylinder, allowing use of a preferred mortise cylinder.

Functional Details

The storeroom function (12) keeps the outside lever continuously locked, requiring a key or electric release to gain entry, while the inside push rail always allows immediate free egress. The 56 electrification adds remote control so the trim can be electrically locked or unlocked from a central location.

• Outside trim is continuously locked.
• Key retracts latch for momentary entry.
• Free egress at all times from the inside.
• Latch automatically relocks when door closes.

Arm Type Details

This is a surface-applied vertical rod configuration, with rods running vertically along the door face to engage both a top latch at the frame head and a bottom latch at the threshold. This dual-point latching provides enhanced security and positive door closure on tall fire rated openings.

Included Components

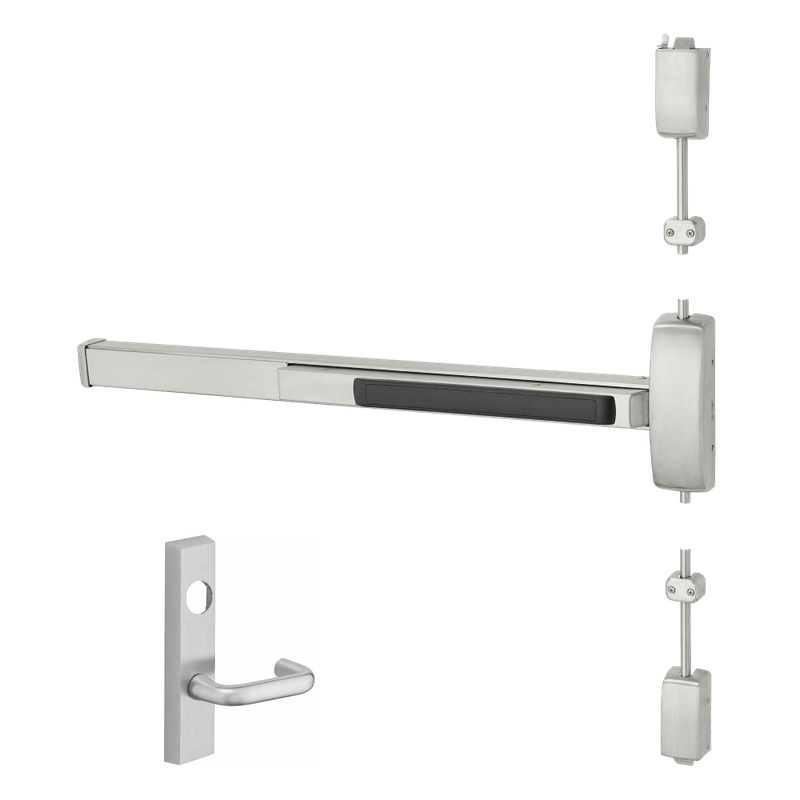

The device ships with the surface vertical rod exit chassis, top and bottom latch assemblies, ETJ lever trim, and mounting hardware. A mortise cylinder is not included and must be ordered separately.
