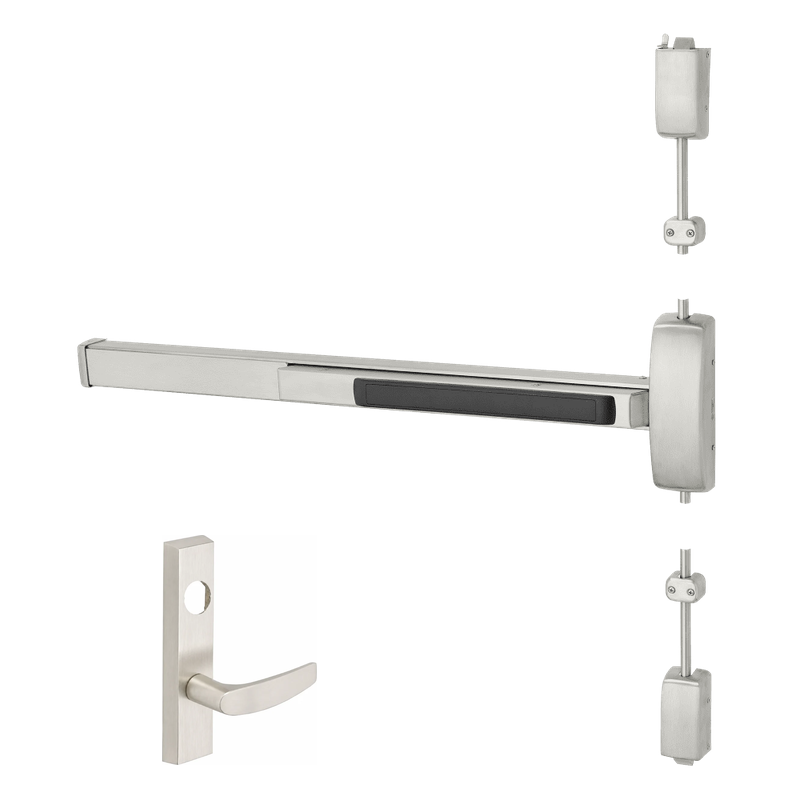

Sargent 56-LC-12-8706-J-ETB-96 Electrified Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 96" Ht Door, Less Cylinder

The Sargent 56-LC-12-8706-J-ETB-96 is a heavy-duty electrified fire rated surface vertical rod exit device built for demanding commercial openings. Designed for doors measuring 37" to 42" wide and up to 96" tall, it combines reliable panic egress with electrified storeroom-function access control. The unit ships less cylinder (LC), giving you the flexibility to pair it with your preferred mortise cylinder, while the ETB trim and 'J' lever provide a durable, comfortable grip. Part of Sargent's respected 80 Series, this device delivers dependable performance, fire rating compliance, and electrified operation for schools, hospitals, office buildings, and other high-traffic facilities.

Features

• Electrified surface vertical rod exit device engineered for fire rated door assemblies.
• Storeroom function keeps the outside lever locked until released by key or electrical signal.
• Sized for doors 37" to 42" wide and 96" in height.
• Supplied less cylinder (LC) for compatibility with your chosen mortise cylinder.
• ETB exterior trim with the 'J' lever design for ergonomic, long-lasting operation.
• and durable construction suitable for high-traffic commercial use.

Functional Details

The 56 electrified option and storeroom (12) function work together to control access electronically. The outside lever remains locked at all times; momentary electrical actuation or a key retracts the latch to allow entry, while egress from the inside is always free by depressing the push bar.

• Electrically Unlocks Outside Trim.
• Outside lever is locked and unlocked by applying/removing power.
• Free egress at all times from the inside.
• Key retracts latch from outside.

Arm Type Details

This is a surface-mounted vertical rod configuration. Top and bottom latch bolts engage the frame and threshold strikes, securing the door at two points for added stability and reliable fire rated performance. Depressing the push bar simultaneously retracts both rods for free egress.

Included Components

The device ships with the 8706 vertical rod exit device chassis, ETB exterior trim with 'J' lever, top and bottom latch assemblies, and mounting hardware. A mortise cylinder is not included and must be ordered separately.
