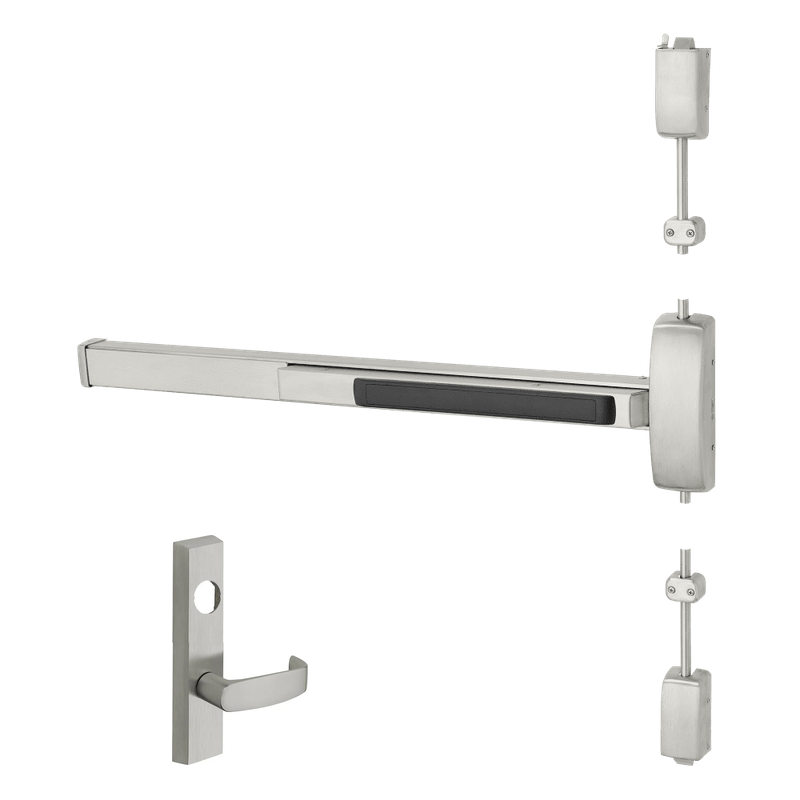

Sargent 56-LC-8706-J-ETL-96 Electrified Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 96" Ht Door, Less Cylinder

The Sargent 56-LC-8706-J-ETL-96 is a heavy-duty electrified surface vertical rod exit device engineered for demanding commercial openings. Built for doors measuring 37-42" wide and up to 96" tall, it combines Grade 1 panic hardware with electric latch retraction (ETL) to support controlled access and remote operation. Configured in a storeroom function with the ET trim and J lever design, it ships less cylinder for flexible keying. Ideal for schools, healthcare facilities, and institutional buildings, this device delivers reliable security, dependable egress, and smooth daily performance under high-traffic conditions.

Features

• Surface-mounted vertical rod configuration provides secure top and bottom latching.
• Electric latch retraction (ETL) allows remote unlatching and momentary or sustained free access.
• Storeroom function keeps the outside lever locked at all times while allowing free egress.
• Sized for wide doors from 37" to 42" and tall openings up to 96".
• J lever ET trim offers a durable, ADA-compliant gripping surface.
• Supplied less cylinder to accommodate your preferred keying system.
• Grade 1 construction built to withstand heavy, repeated commercial use.

Functional Details

The 56- electric latch retraction prefix retracts the latch bolts electrically, enabling the door to be pushed or pulled freely during authorized access periods and relatching automatically when power is removed. In the storeroom (06) function, the outside lever is always locked and the key retracts the latch for momentary access, while egress from the inside is always available.

• Outside lever is always rigid/locked.
• Latchbolt retracted by key from outside.
• Free egress at all times from the inside.
• Electric latch retraction for remote operation and access control integration.

Arm Type Details

This device uses a surface-mounted vertical rod mechanism with upper and lower latch points. When the push bar is depressed, both the top and bottom latches retract simultaneously, releasing the door for immediate egress and distributing holding force across the full height of the opening.

Included Components

The device includes the 8706 vertical rod exit chassis, ET trim with J lever design, top and bottom rods and latches, and the electric latch retraction solenoid assembly. A cylinder is not included and must be ordered separately.
