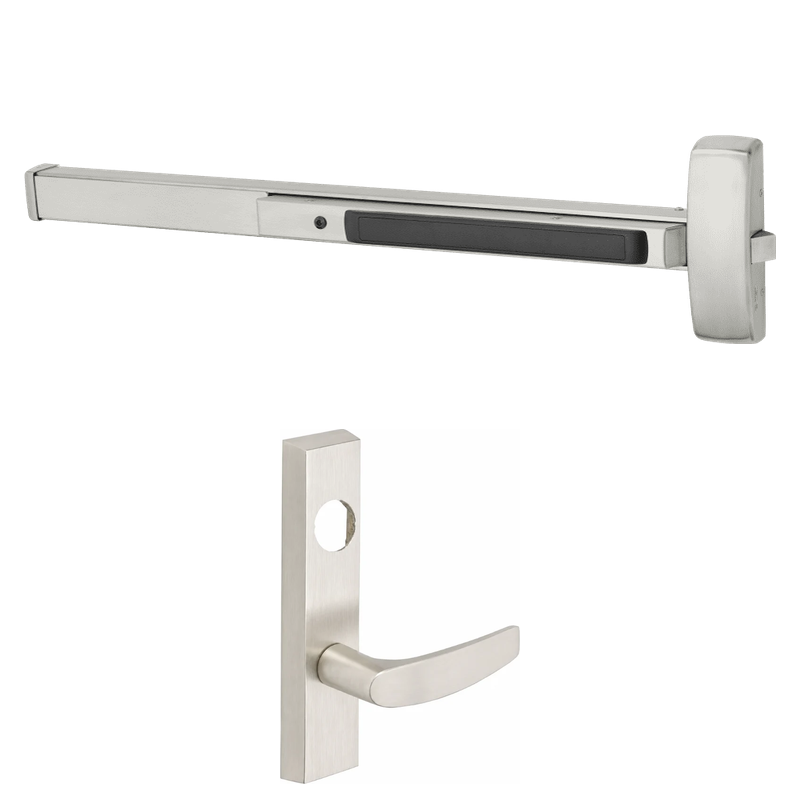

Sargent 56-LC-8875-F-ETB-24V Electrified Rim Exit Device, Fail Safe, For 33-36" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-F-ETB-24V is a heavy-duty electrified rim exit device built for demanding commercial openings that require reliable access control and dependable egress. Designed for door widths between 33" and 36", this device features 24V electric latch retraction (EL) for remote unlatching and momentary free access, making it ideal for integration with card readers, keypads, and building automation systems. Configured as fail safe, the latch retracts to allow passage during a power loss. The unit ships less cylinder (LC) for cylinder flexibility and includes the ETB exit trim for controlled entry from the exterior. It delivers code-compliant life-safety performance with Sargent's proven durability.

Features

• Electric latch retraction operates at 24V for smooth, quiet remote unlatching.
• Fail safe function retracts the latch on power loss to permit free egress and access.
• Sized for 33" to 36" door widths for broad application coverage.
• Supplied less cylinder, allowing the installer to specify the preferred cylinder.
• ETB electrified exit trim provides secure keyed or controlled entry from the outside.
• Rim-mounted design simplifies installation and maintenance on single or double doors.
• Grade 1 construction stands up to high-traffic commercial environments.

Functional Details

The 8875 fail safe electric latch retraction device uses a 24V solenoid to retract the latchbolt electronically. Energizing the device dogs the latch for push/pull operation, while removing power on this fail safe configuration allows the latch to retract for access and egress, supporting integration with access control and fire alarm systems.

• Electric latch retraction (EL) for remote dogging and momentary release.
• Fail safe (F) operation for controlled access during power interruption.
• Designed for use with access control systems and automatic operators.

Arm Type Details

As a rim exit device, the 8875 mounts to the surface of the door with the latch engaging a strike on the frame. This straightforward configuration offers reliable panic egress and easy serviceability on standard swinging doors.

Included Components

The device includes the 8875 rim exit chassis with electric latch retraction, the ETB electrified exit trim, and mounting hardware. The cylinder is not included and must be ordered separately.
