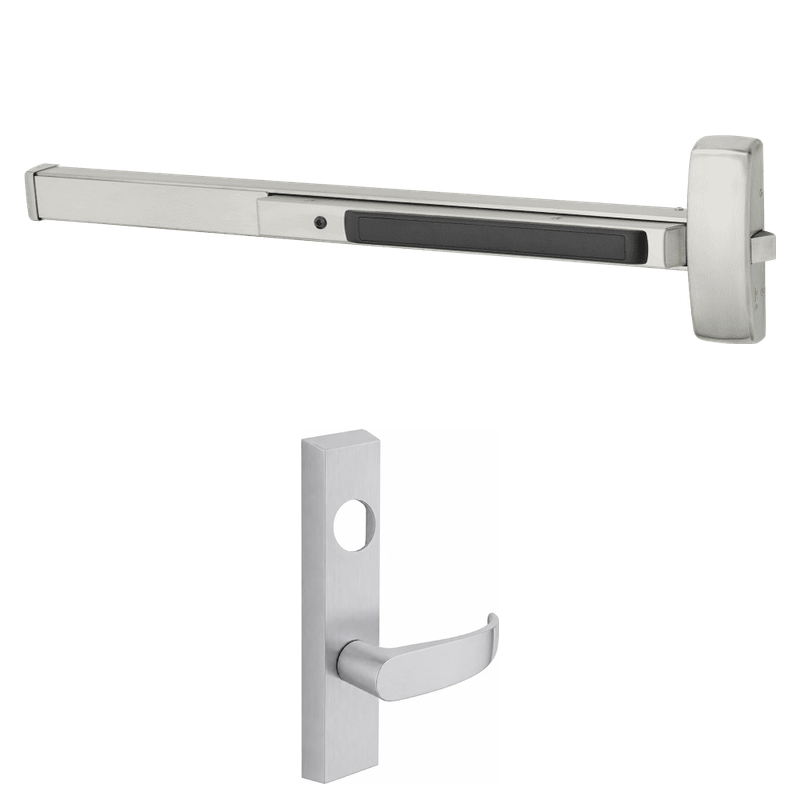

Sargent 56-LC-8875-F-ETP-12V Electrified Rim Exit Device, Fail Safe, For 33-36" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-F-ETP-12V is a heavy-duty electrified rim exit device built for high-traffic commercial and institutional openings. Designed for door widths between 33" and 36", this device combines reliable panic exit hardware with 12V electric latch retraction (ELR) for remote access control and automatic operation. Configured in a fail-safe arrangement, it unlocks during a power loss to support egress and safety requirements. It ships less cylinder (LC), allowing you to supply the preferred mortise cylinder, and includes the ET "P" lever trim for secure, keyed outside access. Grade 1 construction ensures long-term durability in demanding environments.

Features

• Electric latch retraction (ELR) allows remote unlatching and integration with access control or automatic operators.
• Fail-safe design releases the latch during power failure to permit free egress.
• Sized for 33" to 36" door widths for broad application coverage.
• Supplied with ETP lever trim for keyed outside access.
• Less cylinder configuration lets you install a compatible mortise cylinder of your choice.
• Operates on 12 volts DC for straightforward power supply compatibility.
• Grade 1 rated rim exit device for dependable, high-cycle performance.

Functional Details

The electric latch retraction function uses an internal solenoid or motor to withdraw the latch bolt electronically, enabling push/pull operation or dogging without mechanical dogging. In the fail-safe mode, the latch retracts or releases automatically when power is removed, ensuring the door remains operable for egress.

• Electric latch retraction (ELR) for remote release and momentary or continuous retraction.
• Fail safe (F) operation unlocks the outside trim or retracts the latch upon loss of power.
• Rim-mounted application for single doors or the active leaf of a pair.

Arm Type Details

The ETP trim provides a keyed lever that controls outside access. When the exit device is unlatched or the cylinder is operated, the lever allows entry; otherwise the outside remains secured while the inside push bar always permits free egress.

Included Components

Includes the 56-8875 rim exit device chassis, ETP lever trim, and 12V electric latch retraction components. Mortise cylinder is not included and must be ordered separately.
