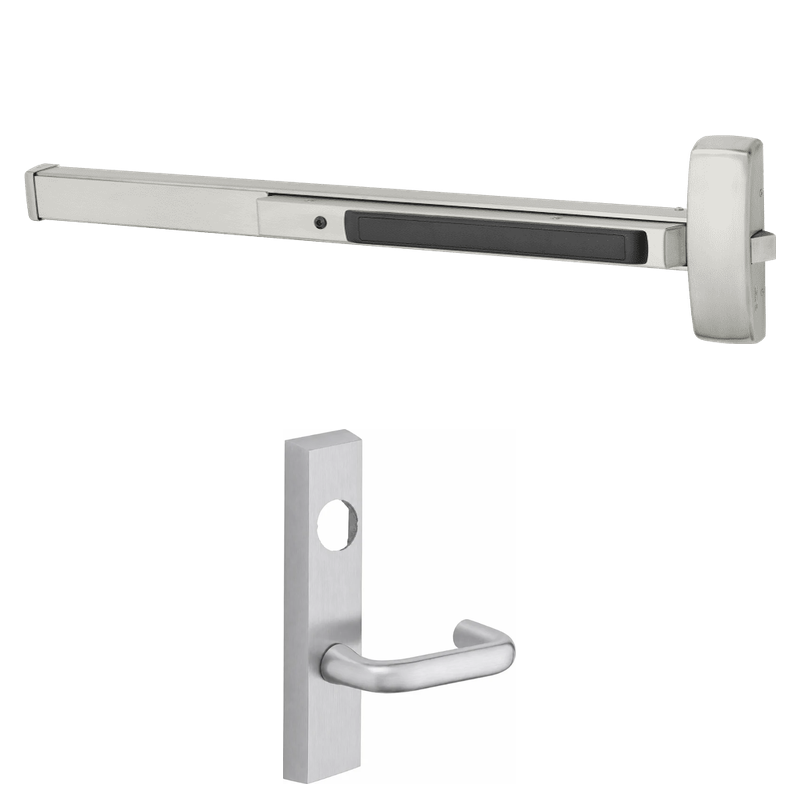

Sargent 56-LC-8875-J-ETJ-12V Electrified Rim Exit Device, Fail Safe, For 37-42" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-J-ETJ-12V is a heavy-duty electrified rim exit device built for high-traffic commercial and institutional openings. It combines electric latch retraction with a fail-safe operating mode, allowing the latch to retract on signal for remote access control, automatic operators, or secured entry integration. Designed for door widths between 37 and 42 inches, this device ships less cylinder (LC) to accommodate your preferred keying system and features the J (night latch) exterior trim. Operating on 12V, it offers reliable performance and durable construction, making it a dependable choice for access-controlled doors where security and controlled egress are essential.

Features

• Electric latch retraction (EL) allows the latch to be retracted electrically for remote or automated access.
• Fail-safe operation retracts the latch when power is applied and secures the door when power is lost.
• Sized for door widths from 37 to 42 inches.
• Supplied less cylinder (LC) for compatibility with your chosen keying hardware.
• ETJ (J) escutcheon night latch trim for exterior access.
• Operates on 12V for smooth, dependable latch control.
• Rugged construction suited for high-use commercial applications.

Functional Details

This device uses electric latch retraction to pull back the latchbolt when energized, enabling push/pull operation and integration with automatic door operators or access control systems. In the fail-safe configuration, the latch retracts with power applied and relocks when power is removed, supporting secure-when-de-energized requirements.

• Electric latch retraction (EL) for momentary or constant retraction.
• Fail-safe mode: latch secures upon loss of power.
• 12V operation for access control integration.

Arm Type Details

The ETJ (J) trim provides night latch functionality, allowing key-controlled access from the exterior while permitting free egress from the interior at all times.

Included Components

Ships as a complete rim exit device with ETJ exterior night latch trim and electric latch retraction components. Cylinder is not included and must be ordered separately.
