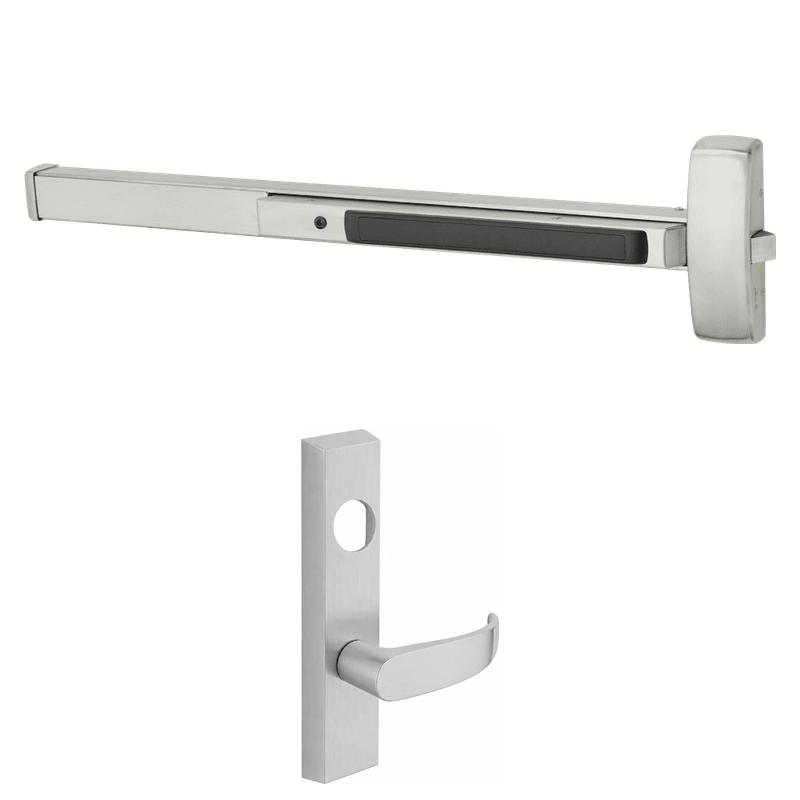

Sargent 56-LC-8875-J-ETP-24V Electrified Rim Exit Device, Fail Safe, For 37-42" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-J-ETP-24V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that demand reliable access control. Engineered for doors measuring 37" to 42" wide, it features 24V electric latch retraction (ELR) that allows the latch to be pulled back electronically for remote operation, push/pull function, or integration with access control and automatic operators. Configured as fail safe, the latch retracts and remains unlocked when power is interrupted, making it ideal for egress and life-safety applications. Supplied with the ETP electrified trim and the J escutcheon, this device ships less cylinder for pairing with your preferred keying system.

Features

• 24V electric latch retraction (ELR) for remote latch control and integration with access systems.
• Fail safe operation unlocks the device automatically upon loss of power.
• Sized for door widths from 37" to 42" for wide-opening commercial applications.
• ETP electrified exit trim provides powered access from the outside.
• J escutcheon trim design for a clean, durable appearance.
• Rim-mounted design for straightforward installation on single and double doors.
• Ships less cylinder, allowing you to specify your own cylinder and keyway.

Functional Details

The electric latch retraction function uses a 24V solenoid to pull the latch bolt back electronically, allowing the door to be operated remotely or in a push/pull free-access mode. In the fail safe configuration, removing power releases the latch so the opening stays unlocked, supporting safe egress during emergencies.

• Electric latch retraction (ELR) retracts the latch electronically for remote operation.
• Fail safe: device unlocks on power failure.
• Compatible with access control systems and automatic door operators.

Included Components

This order includes the 8875 rim exit device chassis with electric latch retraction, the ETP electrified trim with J escutcheon, and the required mounting hardware. A cylinder is not included and must be ordered separately.
