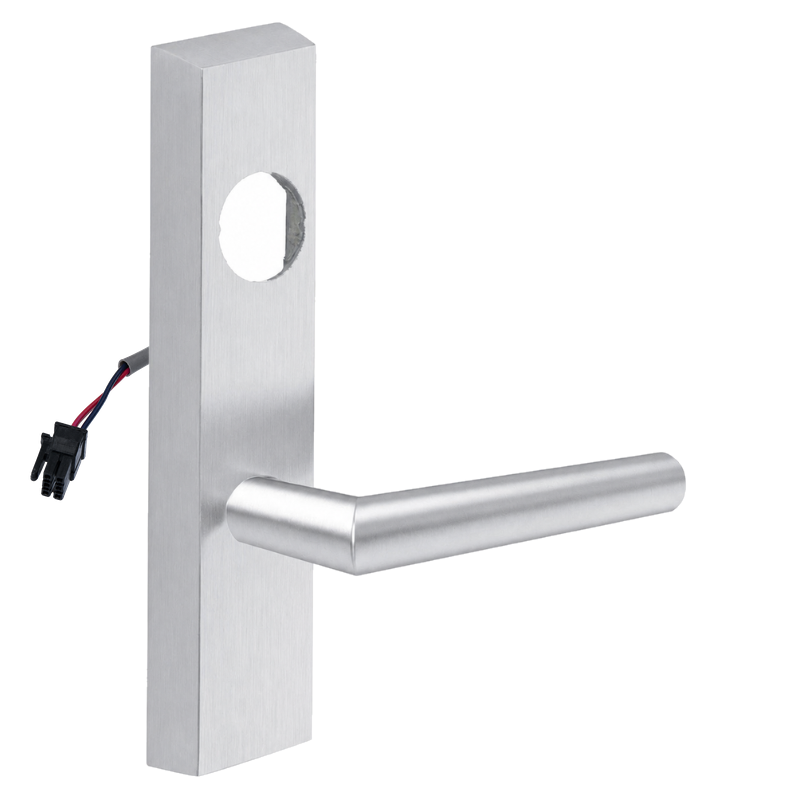

Sargent LC-776-8-ETMI-24V Electrified Lever Trim, "ET" MI Lever, Key Retracts Latch, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-776-8-ETMI-24V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices and combines secure access control with dependable mechanical egress. This trim features the "ET" MI lever and a key retracts latch function, with field-selectable fail safe/fail secure operation to suit a range of door control requirements. Rated for 10.2V-26.4V operation, the LC-776-8-ETMI-24V helps support electrified openings where remote control and credentialed entry are needed. Supplied less cylinder, it is ideal for applications that require cylinder selection to match existing keying systems.

Features

• Sargent LC-776-8-ETMI-24V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• Includes the "ET" MI lever design for a consistent appearance and operating feel.
• Key retracts latch function provides mechanical key operation for latch retraction.
• Supports fail safe/fail secure operation for flexible access control configuration.
• Operates on 10.2V-26.4V electrical input.
• Supplied less cylinder for use with a separately provided cylinder.

Functional Details

This electrified lever trim allows the outside lever to be controlled electrically while maintaining the required exit device operation on the secure side of the opening. The key retracts latch function adds mechanical override capability, and the fail safe/fail secure setup can be selected to match life-safety and security needs at the door.

• Fail safe or fail secure operation
• Key retracts latch
• Operates on 12 or 24 volt AC/DC
• Non-handed

Included Components

This trim is supplied less cylinder. A compatible cylinder must be ordered separately to complete the opening based on the required keying system.
