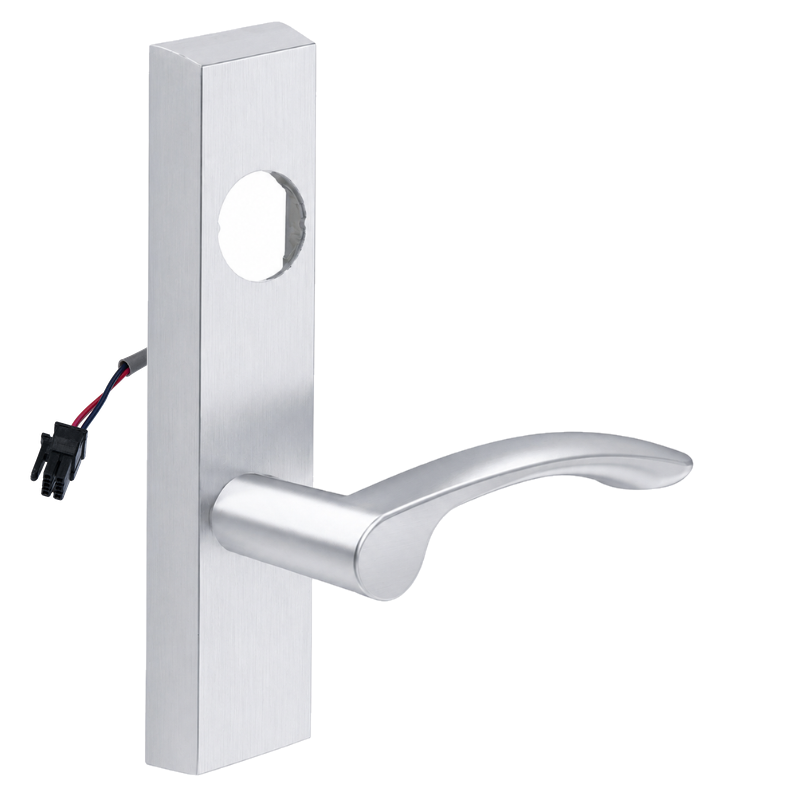

Sargent LC-776-8-ETMV-12V Electrified Lever Trim, "ET" MV Lever, Key Retracts Latch, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-776-8-ETMV-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled outside access in a durable trim package. This configuration features the "ET" MV lever, key retracts latch operation, and field-selectable fail safe/fail secure functionality for flexible access control integration. Rated for 10.2V-26.4V operation, the LC-776-8-ETMV-12V trim supports a wide input voltage range to suit a variety of power supplies and system requirements. This model is supplied less cylinder, making it a practical choice when the cylinder will be furnished separately to match existing keying systems.

Features

• Sargent LC-776-8-ETMV-12V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• This trim includes the "ET" MV lever design.
• The key retracts latch function allows latch retraction by key operation.
• Field-selectable fail safe/fail secure operation provides installation flexibility.
• The trim operates on 10.2V-26.4V input.
• This model is furnished less cylinder.

Functional Details

This electrified trim controls the outside lever through the access control system while maintaining mechanical key operation for latch retraction. The fail safe/fail secure capability allows the installer to configure how the trim responds during power loss, helping the opening meet the intended security and life-safety requirements.

• Outside trim can be unlocked by electrical impulse, card reader, keyswitch, etc.
• Field selectable for fail locked or fail unlocked.
• 12 or 24 volt DC
• Solenoid draws 16 amps inrush, .25 amps holding at 24 VDC and 24 amps inrush, .5 amps holding at 12 VDC.

Included Components

The Sargent LC-776-8-ETMV-12V Electrified Lever Trim is supplied as trim only and is furnished less cylinder. A mortise cylinder must be ordered separately when keyed operation is required.
