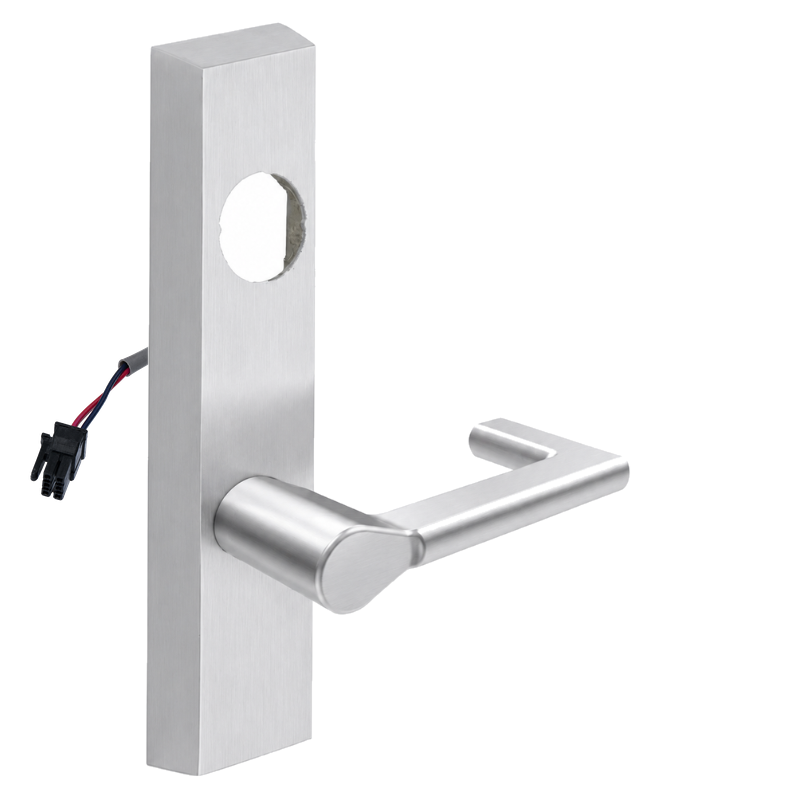

Sargent LC-776-8-ETND-24V Electrified Lever Trim, "ET" ND Lever, Key Retracts Latch, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-776-8-ETND-24V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled outside access in a durable electrified trim package. This configuration features the "ET" ND lever, key retracts latch operation, and field-selectable fail safe/fail secure functionality. Built for 10.2V-26.4V operation, the LC-776-8-ETND-24V is well suited for commercial openings that require dependable electrical control with mechanical key override. Supplied less cylinder, this trim offers flexibility for matching existing keying systems while delivering compatibility with Sargent exit device applications.

Features

• Sargent LC-776-8-ETND-24V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• This trim uses the "ET" ND lever design for a clean, functional outside trim configuration.
• Key retracts latch operation provides mechanical latch retraction by key when authorized access is needed.
• Fail safe/fail sec capability allows the trim to be configured for the application requirements.
• The trim operates across a 10.2V-26.4V voltage range for 24V electrified openings.
• Supplied less cylinder for use with the appropriate cylinder selected separately.

Functional Details

This electrified trim controls the outside lever through electrical input while retaining key retracts latch functionality for mechanical override. The fail safe/fail secure capability allows the trim function to be set to match life safety, security, and access control requirements at the opening.

• Field selectable for fail safe or fail secure operation.
• Operating voltage: 10.2 through 26.4 VDC.
• Key retracts latch.

Included Components

This LC-776-8-ETND-24V electrified lever trim is supplied less cylinder. Cylinder components are not included and must be ordered separately to suit the opening's keying requirements.
