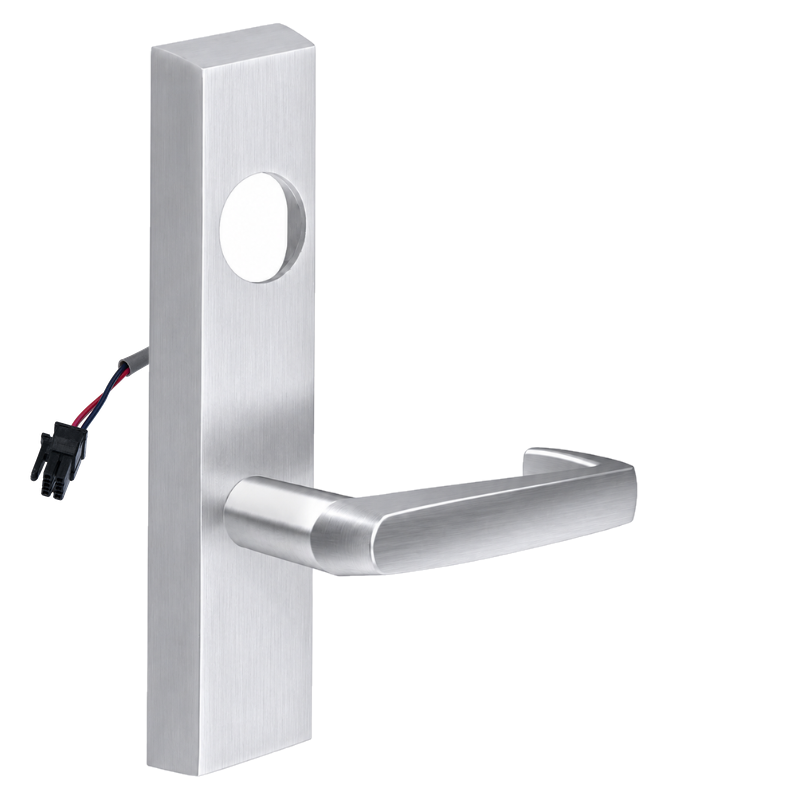

Sargent LC-776-8-ETNJ-12V Electrified Lever Trim, "ET" NJ Lever, Key Retracts Latch, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-776-8-ETNJ-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled entry with an "ET" NJ lever configuration. This trim features key retracts latch operation and supports both fail safe and fail secure modes, making it suitable for a range of access control applications. With an operating voltage range of 10.2V-26.4V, the LC-776-8-ETNJ-12V offers installation flexibility while maintaining dependable performance. Supplied less cylinder, it is ideal for projects requiring cylinder compatibility to be specified separately.

Features

• Sargent LC-776-8-ETNJ-12V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• The trim includes the "ET" NJ lever design for controlled exterior operation.
• Key retracts latch functionality allows latch retraction by key operation.
• The unit supports both fail safe and fail secure operating modes.
• The trim operates on 10.2V-26.4V power.
• This model is supplied less cylinder.

Functional Details

This electrified lever trim is built for access control applications where the outside lever is controlled electrically while still allowing keyed mechanical operation. The key retracts latch function provides authorized key access, and the trim can be configured for either fail safe or fail secure behavior depending on the opening requirements.

• For use with 8800, 8500 and NB8700 series rim and mortise devices
• Key retracts latchbolt
• Field selectable for fail secure/fail safe
• 12 or 24 volt DC operation

Included Components

This electrified lever trim is supplied less cylinder. Cylinder components must be ordered separately to match the door hardware keying requirements.
