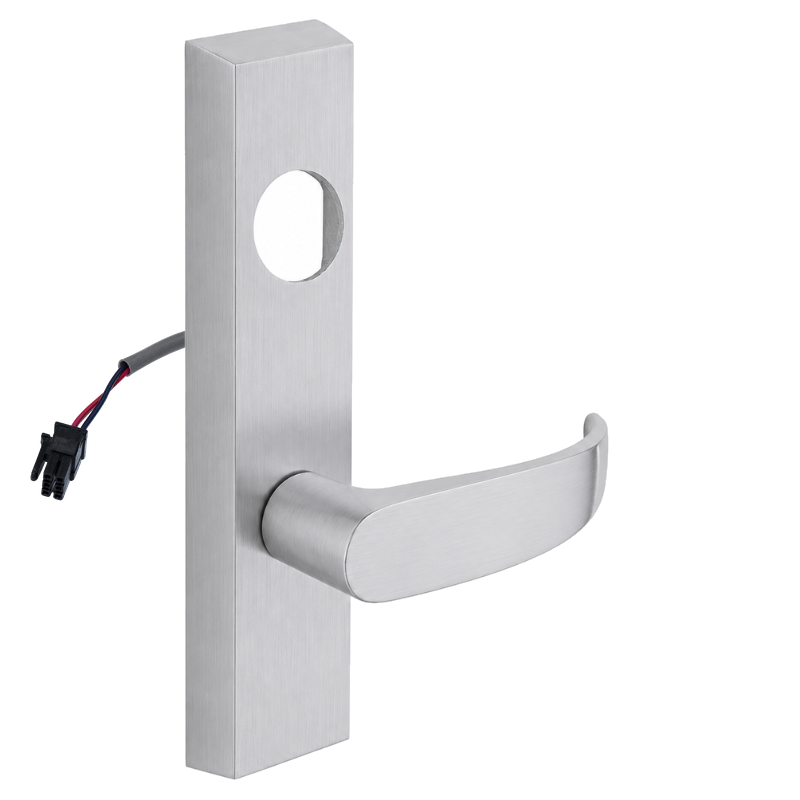

Sargent LC-776-8-ETP-24V Electrified Lever Trim, "ET" P Lever, Key Retracts Latch, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-776-8-ETP-24V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices and combines secure access control with dependable mechanical egress. This trim features the "ET" P lever and a key retracts latch function, with field-selectable fail safe/fail sec operation to suit a range of openings. Built for 10.2V-26.4V applications, the LC-776-8-ETP-24V helps support controlled entry while maintaining compatibility with Sargent exit device platforms. Supplied less cylinder, it is a practical choice for retrofit and new commercial door hardware installations where electrified trim is required.

Features

• Sargent LC-776-8-ETP-24V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• The trim includes the "ET" P lever configuration.
• This model uses a key retracts latch function.
• Fail safe/fail sec operation is field selectable for application flexibility.
• The unit operates on 10.2V-26.4V.
• This trim is supplied less cylinder.

Functional Details

This electrified trim allows controlled outside access while working with compatible Sargent exit devices. The key retracts latch function provides mechanical latch retraction by key, while the electrified operation supports remote control of the lever. The fail safe/fail sec configuration can be selected to match the security and life-safety needs of the opening.

• Field reversible handing.
• Available in fail safe or fail secure.
• Voltage: 24VDC standard; 12VDC optional.
• Current draw: 24VDC -.25 amp inrush, .14 amp holding; 12VDC -.50 amp inrush, .28 amp holding.
• Cylinder locks and unlocks lever, except NL function.
• Outside lever is always rigid.

Arm Type Details

This electrified lever trim is configured as a lever-operated outside trim for compatible exit devices rather than a closer arm assembly. The "ET" P lever design provides the required trim style and operating interface for the specified Sargent 8800, 8888, 8500, and NB8700 Series devices.

Included Components

The Sargent LC-776-8-ETP-24V Electrified Lever Trim is supplied as trim only and is furnished less cylinder. It is intended for use with compatible 8800, 8888, 8500, and NB8700 Series exit devices.
