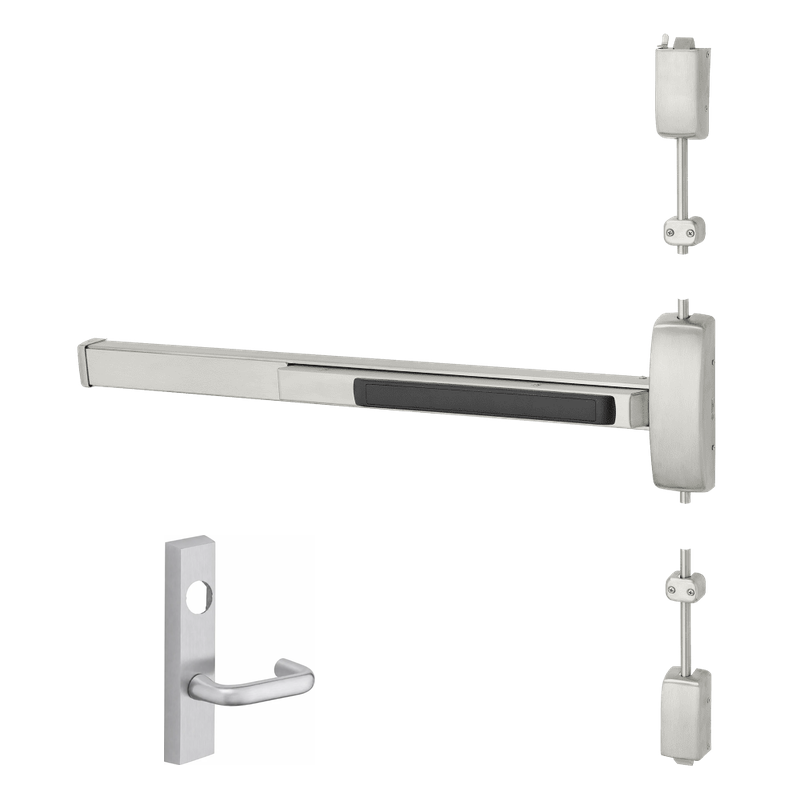

Sargent LC-8706-F-ETJ-84 Surface Vertical Rod Exit Device, Storeroom, For 33-36" Width, 84" Ht Door, Less Cylinder

The Sargent LC-8706-F-ETJ-84 is a heavy-duty surface vertical rod exit device engineered for demanding commercial openings. Built for fire-rated door assemblies, it provides reliable panic egress while the ETJ storeroom trim keeps the opening secured from the outside. This configuration is designed for doors measuring 33" to 36" wide and up to 84" in height, and it ships less cylinder so you can match your existing keying system. With its durable construction and Grade 1 performance, the 8700 Series is a dependable choice for schools, healthcare facilities, offices, and other high-traffic environments requiring consistent, code-compliant exit control.

Features

• Surface-mounted vertical rod design for both top and bottom latching on the door.
• Fire-rated (F) construction suitable for fire door assemblies.
• ETJ storeroom function lever trim keeps the outside lever locked at all times.
• Sized for 33" to 36" wide doors and heights up to 84".
• Supplied less cylinder (LC) for integration with your preferred keying.
• Grade 1 rated for durability in heavy-use commercial applications.
• Smooth push-pad activation provides free egress at all times.

Functional Details

The storeroom function provides secure access control from the exterior while allowing uninterrupted free egress through the push pad. The outside lever remains locked and requires a key to retract the latch; the latch returns to the locked state when released, and the key cannot be left to hold the lever unlocked.

• Outside lever is always rigid/locked.
• Latchbolt retracted by key from outside or by lever/pad from inside.
• Free egress at all times by operating the exit device push pad.

Arm Type Details

This device uses a surface-mounted vertical rod mechanism. Depressing the push pad simultaneously retracts the top and bottom latches, releasing the door; the rods automatically relatch when the door returns to the closed position, securing both the head and sill of the frame.

Included Components

The device ships with the exit device chassis, top and bottom surface vertical rods and latches, and the ETJ lever trim. A mortise cylinder is not included and must be ordered separately.
