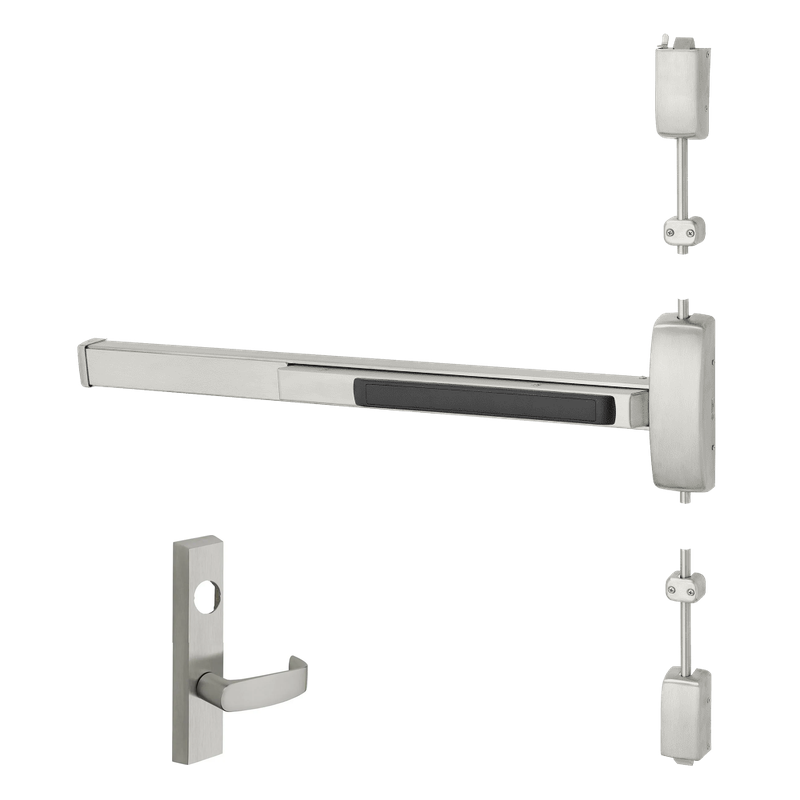

Sargent LC-8706-F-ETL-96 Surface Vertical Rod Exit Device, Storeroom, For 33-36" Width, 96" Ht Door, Less Cylinder

The Sargent LC-8706-F-ETL-96 is a surface vertical rod exit device engineered for demanding commercial and institutional openings. Built to fit doors measuring 33" to 36" wide and up to 96" in height, this fire-rated device delivers reliable panic egress combined with secure storeroom-function access. The "LC" designation means it ships less cylinder, allowing you to install a cylinder that matches your existing keying system. Paired with the ETL escutcheon trim, it provides lever-controlled entry from the outside while maintaining free egress at all times. Durable construction and ANSI Grade 1 performance make it a dependable choice for high-traffic environments.

Features

• Surface-mounted vertical rod design provides two-point latching at the top and bottom of the door for added security.
• Fire-rated (F) construction suitable for labeled door and frame assemblies.
• Storeroom function keeps the outside lever locked until a key is used, with the latch relocking automatically.
• Supplied less cylinder (LC) for easy integration with your own keying system.
• ETL escutcheon lever trim offers a clean, durable exterior operating interface.
• Sized for doors 33"–36" wide and up to 96" tall.
• ANSI/BHMA Grade 1 rated for heavy-duty commercial use.

Functional Details

The storeroom function (06) secures the opening by keeping the outside trim locked at all times. A key retracts the latch for momentary entry, after which the device relocks automatically, while the inside push rail always allows free egress.

• Outside lever is always locked.
• Key unlocks and retracts latch for momentary access.
• Latch relocks when the key is released.
• Free egress at all times from the inside.

Arm Type Details

This device uses a surface vertical rod configuration, with exposed rods running vertically along the face of the door to top and bottom latch points. This arrangement provides secure two-point latching without the need to mortise rods into the door.

Included Components

The device ships with the 8700 series surface vertical rod chassis, top and bottom latch assemblies, vertical rods, and the ETL escutcheon lever trim. A mortise cylinder is not included and must be ordered separately.
