Sargent LC-8706-F-ETP-96 Surface Vertical Rod Exit Device, Storeroom, For 33-36" Width, 96" Ht Door, Less Cylinder

The Sargent LC-8706-F-ETP-96 is a heavy-duty surface vertical rod exit device engineered for demanding commercial applications on tall openings. Designed for doors measuring 33" to 36" wide and up to 96" in height, this fire-rated unit delivers dependable storeroom function with the ETP (ET trim) lever design for controlled exterior access. Shipping less cylinder, it offers installers the flexibility to specify their preferred mortise cylinder to match an existing keying system. Built to Grade 1 standards, the 8700 Series provides durable panic hardware ideal for schools, hospitals, and high-traffic institutional buildings where life safety and long-term reliability are essential.

Features

• Surface-mounted vertical rod configuration for secure top and bottom latching on tall doors.
• Fire-rated (F) construction suitable for use on labeled fire door assemblies.
• Storeroom function keeps the outside lever locked at all times while allowing free egress.
• Sized specifically for 33"–36" wide doors up to 96" in height.
• Ships less cylinder for keying flexibility with a standard mortise cylinder.
• ETP escutcheon trim with lever provides comfortable, code-compliant exterior operation.

Functional Details

The storeroom function (06) keeps the exterior lever continuously locked, requiring a key to retract the latch for entry. Egress is always available by pressing the push bar from the inside, satisfying life-safety egress requirements.

• Outside lever is always locked.
• Key retracts latch for entry.
• Free egress at all times by depressing the touchpad.

Arm Type Details

This device uses a surface vertical rod design in which push bar activation simultaneously releases the top and bottom latch bolts. The rods and latches mount to the surface of the door, allowing straightforward installation and maintenance without routing into the door edge.

Included Components

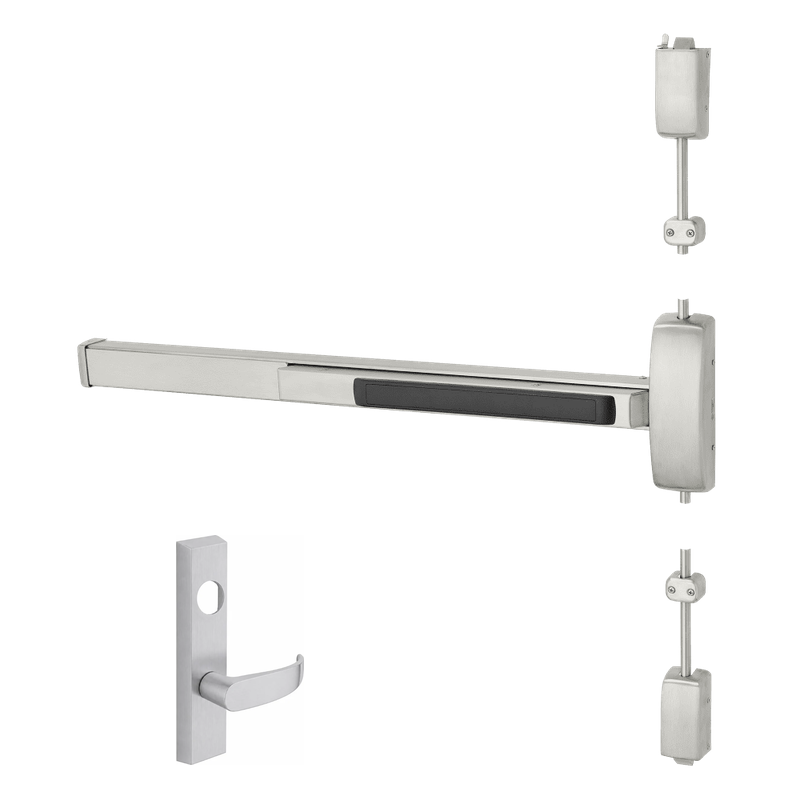

The device includes the vertical rod exit chassis, ETP escutcheon lever trim, top and bottom latch assemblies, and mounting hardware. A compatible mortise cylinder must be ordered separately.
